90* Male Jic X Female Bspp

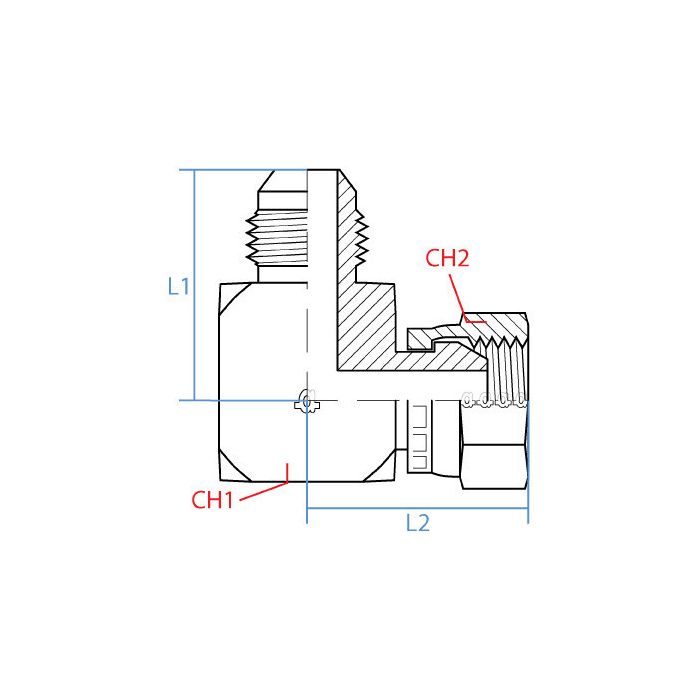

CH1 Width 11mm	CH2 Width 19mm	L1 Length 23mm	L2 Length 20.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9056-04-04	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running BSPP ports and the hydraulic line coming off it has a JIC fitting, will this elbow adapter bridge those two without needing any extra pieces in between?

Question by: Pete S on Oct 12, 2025, 12:20 PM

That's exactly the scenario this adapter is built for. One end is a male JIC 7/16-20 UNF and the other is a female BSPP G 1/4-19, both at 1/4" size, so it connects those two thread standards directly with nothing else needed. The 90-degree angle also helps when the line needs to turn at the connection point rather than running straight out, which cuts down on how much clearance you need around the fitting.

Answer by: Customer Support on Oct 14, 2025, 6:13 AM
