90* Male Bspp Elbow

CH1 Width 22mm	L1 Length 35mm	L2 Length 35mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9055-08-08	Product Weight 0.29 lbs

Product Questions & Answers

got a tight spot on a hose run. what are the actual dimensions on this 90 elbow?

Question by: Hubert F on Jul 13, 2025, 1:43 PM

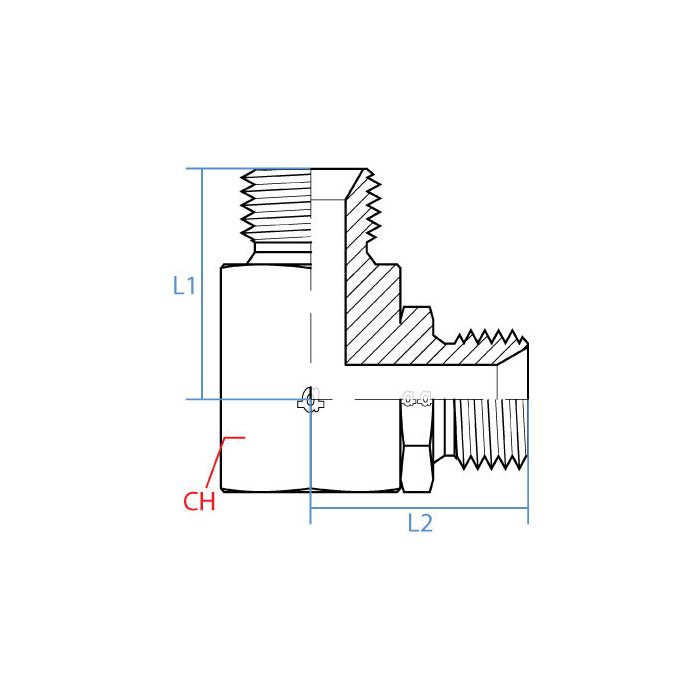

For clearance, the wrench width (Ch1) is 22 mm, and the length from the elbow to each threaded end is 35 mm on both sides (L1 = 35 mm, L2 = 35 mm).

Answer by: Customer Support on Jul 15, 2025, 6:18 AM
