90* Male Bspp Elbow 9055-04-04

Specifications

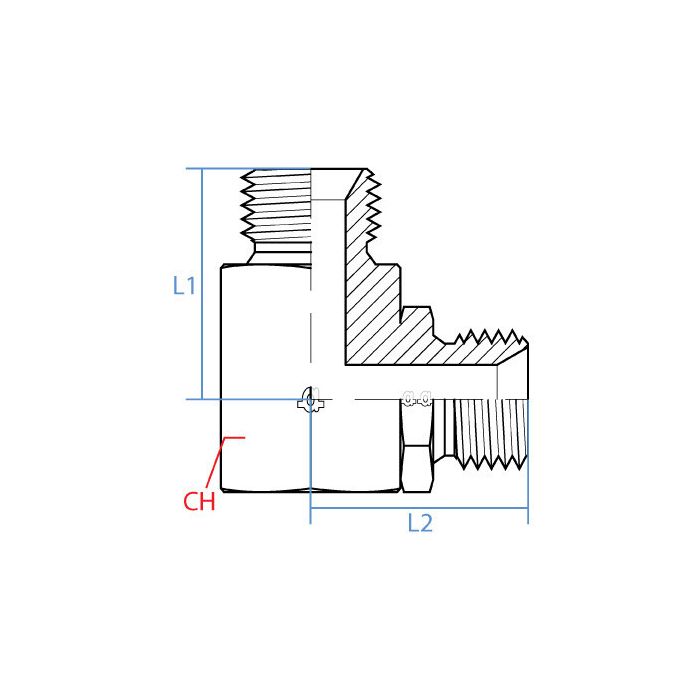

CH Width 19mm	L1 Length 21mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9055-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to keep my hose run tight, is this the right elbow if both ports are G 1/4-19 BSPP male?

Question by: Tommy H on May 25, 2025, 6:52 AM

Built as a right-angle adapter with male G 1/4-19 BSPP threads on both ends, it matches components that take standard G 1/4 BSPP connections on each side.

Answer by: Customer Support on May 26, 2025, 10:03 AM

both ends are male BSPP on this thing? just want to make sure before i order, got a G 1/4 port on my manifold and need something to make a 90 turn off it

Question by: Neal T on Dec 10, 2025, 7:42 PM

Both ends are male G 1/4-19 BSPP, so you'd need a female-ported component or adapter on each side to mate with this fitting. It won't thread directly into another male port. If your manifold has a female G 1/4 BSPP port, one end connects there, and whatever you're routing to on the other side needs the same female thread. Pretty common setup for making a clean right-angle turn off a ported block without adding extra pieces in between.

Answer by: Customer Support on Dec 12, 2025, 6:51 AM

Is this elbow fitting made of steel?

Question by: Clint H on Dec 25, 2025, 8:40 AM

Yes, the 90° Male BSPP Elbow is constructed from steel.

Answer by: Customer Support on Dec 26, 2025, 10:09 AM
