45* Elb. Male Bspp X Male Bspt 9054-12-12

Specifications

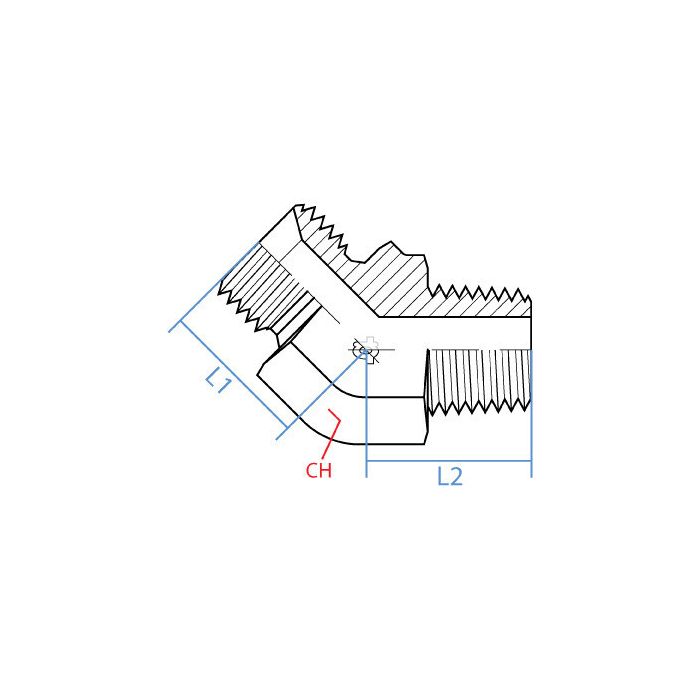

CH Width 27mm	L1 Length 28mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout R 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9054-12-12	Product Weight 0.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system that runs pretty much constantly?

Question by: Travis C on Mar 17, 2026, 1:18 PM

Constructed from durable steel, this fitting is designed to withstand demanding industrial environments, so it should be suitable for continuous operation in a hydraulic system.

Answer by: Customer Support on Mar 19, 2026, 6:32 AM

got a hose end that’s G 3/4-14 and the port is R 3/4-14. is this the elbow that bridges those two?

Question by: Terry C on Mar 23, 2026, 12:07 PM

For tying those two thread types together, it matches what you described. Side 1 is a male BSPP G 3/4-14 and side 2 is a male BSPT R 3/4-14, both in 3/4 inch size, in a 45 degree elbow.

Answer by: Customer Support on Mar 25, 2026, 9:27 AM

Got a line that terminates in BSPP and need to tie into a BSPT port at a 45 angle, this fitting do that job in 3/4"?

Question by: Merle J on Nov 1, 2025, 5:40 PM

That's what this one's built for. One end is male BSPP (G 3/4-14) and the other is male BSPT (R 3/4-14), both at 3/4". The 45 degree elbow lets you make that directional change without needing an extra adapter in the middle. Steel construction, so it holds up in working hydraulic environments without a lot of fuss.

Answer by: Customer Support on Nov 3, 2025, 2:05 PM
