90* Elb. Mbspp X Adjust.Mbspp 9052-12-08

Specifications

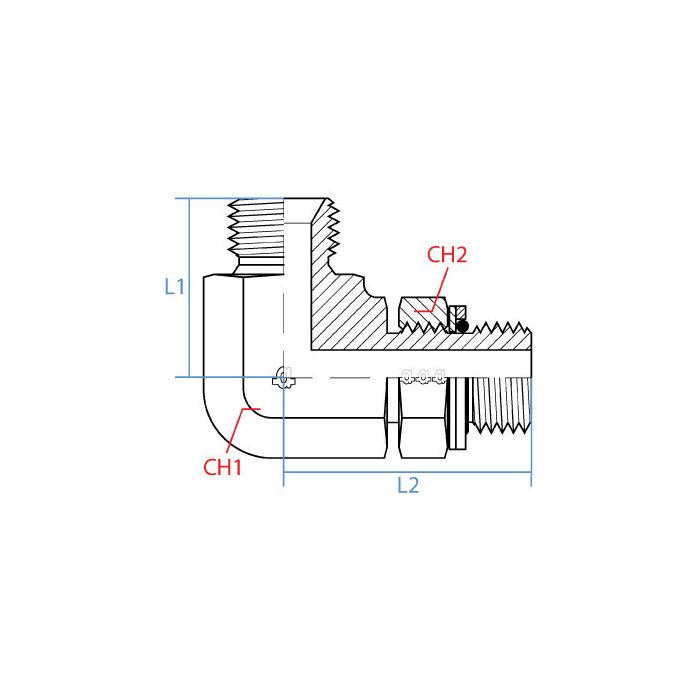

CH1 Width 27mm	CH2 Width 27mm	L1 Length 43mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-12-08	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting and i need a 90 with different bspP sizes. is this one 3/4 male on one side and 1/2 male on the other?

Question by: Curt B on May 6, 2025, 7:02 PM

For a right angle transition between two BSPP male sizes, it matches that setup. One end is G 3/4-14 male BSPP and the other end is G 1/2-14 male BSPP, with the 1/2 side being the adjustable end.

Answer by: Customer Support on May 8, 2025, 9:41 AM

What size wrench do I need to tighten this fitting down?

Question by: Wayne G on Jul 7, 2025, 12:46 PM

Both ends of this Adaptall elbow have wrench flats that measure 27mm across.

Answer by: Customer Support on Jul 9, 2025, 6:27 AM

Got a hydraulic line that needs to drop down at a right angle and step down from 3/4 to 1/2 inch BSPP all in one shot, this fitting handle that?

Question by: Ralph J on Aug 25, 2025, 8:43 AM

That's what this elbow is built for. One end is a fixed 3/4" Male BSPP (G 3/4-14) and the other is a 1/2" Male BSPP (G 1/2-14), and the whole thing turns the line 90 degrees while making that size transition. Steel construction, both wrench flats are 27mm, and the overall footprint comes in at 43mm on one axis and 40mm on the other, so it tucks in reasonably tight.

Answer by: Customer Support on Aug 26, 2025, 12:09 PM
