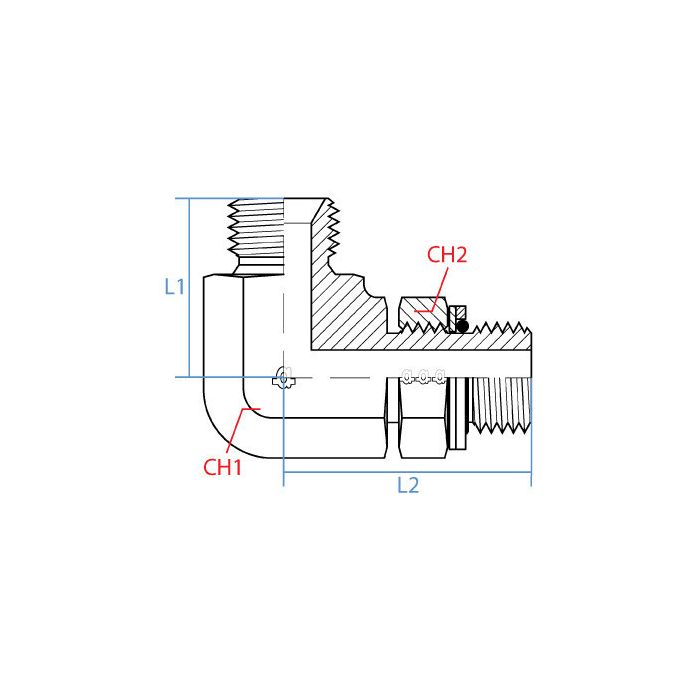

90* Elb. Mbspp X Adjust.Mbspp

CH1 Width 22mm	CH2 Width 24mm	L1 Length 37mm	L2 Length 34mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1FA87	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-08-06	Product Weight 0.35 lbs

Product Questions & Answers 1

Product Questions & Answers

Both ends are male BSPP, is that right? Trying to figure out if this'll thread into my existing female BSPP ports without needing an adapter in between.

Question by: Ralph P on Mar 28, 2026, 10:56 AM

Correct on both counts. Side one is a male G 1/2 - 14 BSPP and side two is a male G 3/8 - 19 BSPP, so you get two different male thread sizes coming off a single 90-degree turn. If your ports are both female BSPP and sized to match those callouts, this fitting threads straight in with no additional adapters needed.

Answer by: Customer Support on Mar 29, 2026, 3:44 PM
