90* Elb. Mbspp X Adjust. Mbspp 9052-06-04

Specifications

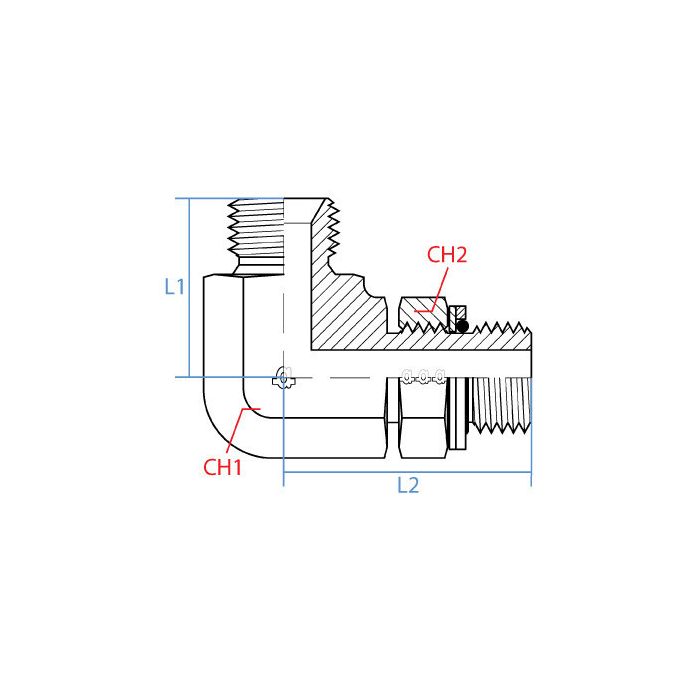

CH1 Width 19mm	CH2 Width 19mm	L1 Length 30mm	L2 Length 35mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1FA85	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-06-04	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got a spot on a hydraulic line where I need to drop from 3/8 BSPP down to 1/4 BSPP and turn the corner at the same time, this fitting do that in one shot?

Question by: Kurt M on May 4, 2025, 9:25 AM

Yeah, that's exactly what this fitting handles. One side is 3/8 BSPP male and the other is 1/4 BSPP male, and the whole thing turns 90 degrees, so you're making the size transition and the direction change without stacking two separate fittings together. Both threads are the parallel BSPP style, G 3/8-19 on the larger end and G 1/4-19 on the smaller end. Steel construction, so it holds up in standard hydraulic line work without issue.

Answer by: Customer Support on May 5, 2025, 9:03 PM

What size are the ends on this elbow fitting?

Question by: Tony W on May 29, 2025, 5:08 PM

It has a 3/8" BSPP male connection on one side and a 1/4" BSPP male connection on the other.

Answer by: Customer Support on May 31, 2025, 2:15 PM

trying to replace an elbow on a little hydraulic line, is this one 3/8 BSPP male on one end and 1/4 BSPP male on the other?

Question by: Earl W on Feb 17, 2026, 2:10 PM

It is a 90 degree steel elbow with BSPP male threads on both sides. Side 1 is 3/8 inch BSPP with a G 3/8 - 19 callout, and Side 2 is 1/4 inch BSPP with a G 1/4 - 19 callout.

Answer by: Customer Support on Feb 19, 2026, 6:30 AM
