90* Elb. Mbspp X Adjust.Mbspp

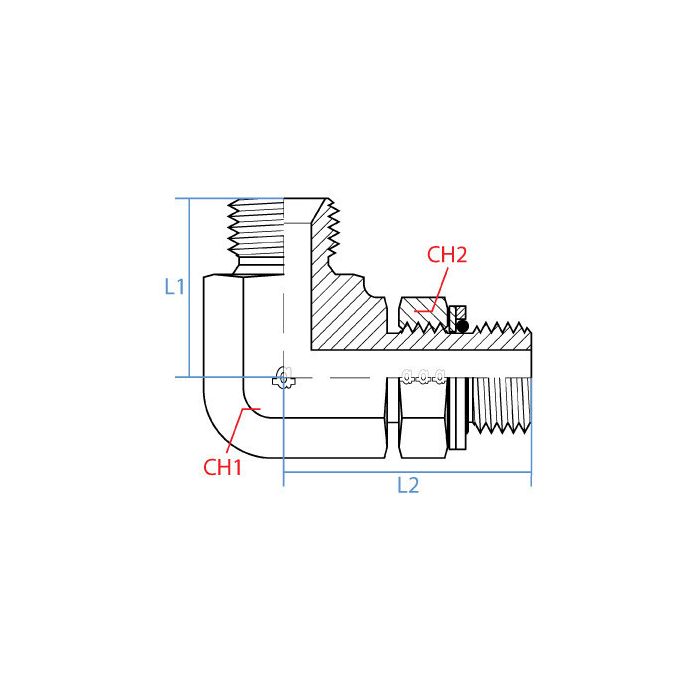

CH1 Width 19mm	CH2 Width 24mm	L1 Length 34mm	L2 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1FA84	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9052-04-06	Product Weight 0.25 lbs

Product Questions & Answers

What's the deal with the two different sizes on this elbow? I'm seeing 1/4" and 3/8".

Question by: Rusty F on Mar 9, 2026, 11:34 AM

It’s designed with different sized male BSPP ends. One side is 1/4" with a G 1/4 - 19 callout, and the other is 3/8" with a G 3/8 - 19 callout.

Answer by: Customer Support on Mar 11, 2026, 6:42 AM

trying to replace an elbow on a machine, is this one male BSPP on both ends and what sizes are they

Question by: Brett S on Jun 11, 2025, 7:53 PM

Both ends are male BSPP. One side is G 1/4-19 (1/4 inch) and the other side is an adjustable male BSPP in G 3/8-19 (3/8 inch).

Answer by: Customer Support on Jun 13, 2025, 10:59 AM
