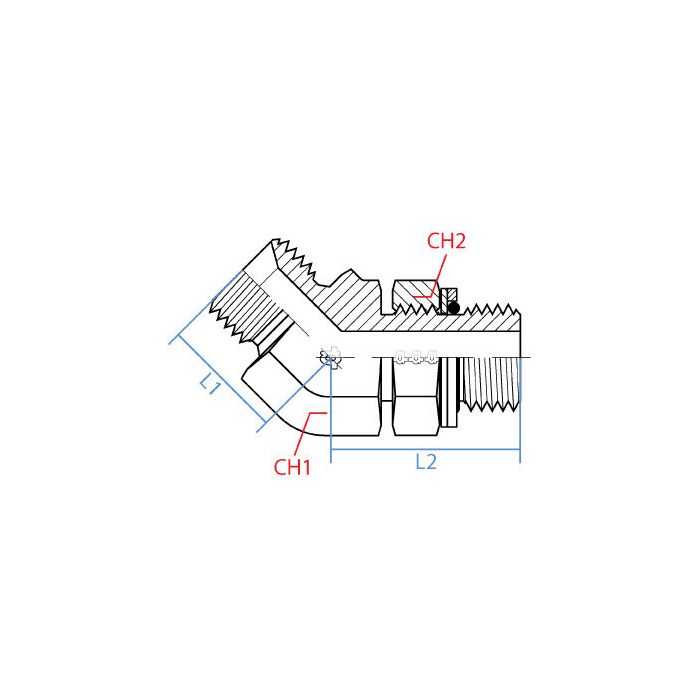

45* Elb. Mbspp X Adjust.Mbspp

CH1 Width 27mm	CH2 Width 36mm	L1 Length 31mm	L2 Length 42mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9051-12-12	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to get a hose to turn a corner without kinkin it up, is this a 45 degree elbow and are both ends the same thread?

Question by: Vince B on Aug 30, 2025, 12:50 PM

Built as a 45° elbow, it gives you that angled change in direction while keeping the connection size the same on both sides. Both ends are 3/4 inch male BSPP with the G 3/4 - 14 thread callout.

Answer by: Customer Support on Aug 31, 2025, 7:31 PM

got a hydraulic line that needs to make a 45 degree turn and both ports are 3/4 BSPP male, will this fitting work for that?

Question by: Melvin C on Dec 28, 2025, 1:44 PM

For same-size 3/4" BSPP male-to-male connections that need a 45 degree directional change, yeah this is exactly what you'd want. Both sides are G 3/4-14 male BSPP threads, so the thread spec matches up on each end. The 45 degree elbow shape handles the directional change, and the adjustable end on one side lets you rotate it into position during installation so you're not fighting the fitting to get your line pointed the right way.

Answer by: Customer Support on Dec 30, 2025, 6:31 AM
