45* Tube Elbow M.Bspp X F.Bspp 9047-08-08

Specifications

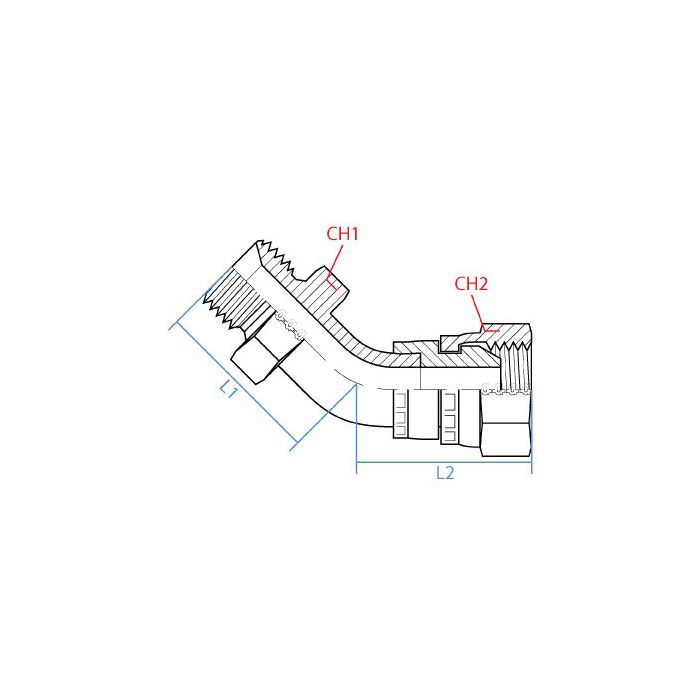

CH1 Width 27mm	CH2 Width 27mm	L1 Length 34mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9047-08-08	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on a line, is this one male bspP to female bspP and both ends 1/2?

Question by: Shawn M on Dec 24, 2025, 3:20 PM

Both ends are BSPP with a G 1/2 - 14 callout, and it is a male on one side and a female on the other. Each end is listed as 1/2 inch size.

Answer by: Customer Support on Dec 25, 2025, 7:16 PM

What’s the width on the flats for wrenching on this elbow fitting?

Question by: Keith G on Sep 13, 2025, 10:49 AM

It’s 27mm across for both the male and female ends, so you can use the same wrench on either side.

Answer by: Customer Support on Sep 15, 2025, 8:39 AM

both ends on this fitting are the same size, right? just wanna make sure before i order, 1/2" BSPP on each side?

Question by: Patty W on Jun 29, 2025, 9:17 AM

Correct on both counts. The male end and the female end are each 1/2" BSPP with a G 1/2 - 14 thread callout. So if you're working with a run of same-size BSPP line and need a 45-degree change in direction, this fitting matches up on both sides without any reduction or step-down.

Answer by: Customer Support on Jun 30, 2025, 9:12 PM
