45* Tube Elbow M.Bspp X F.Bspp

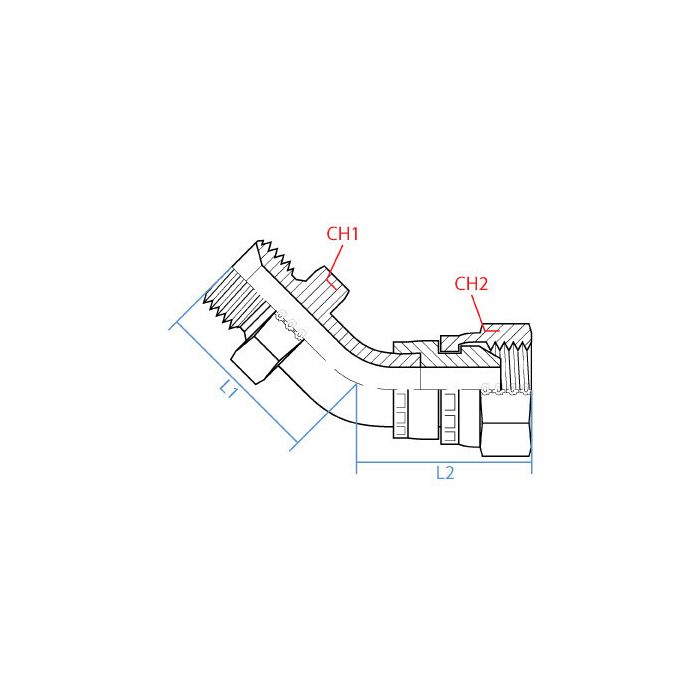

CH1 Width 22mm	CH2 Width 22mm	L1 Length 28mm	L2 Length 36mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9047-06-06	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 3/8 BSPP male on one line and need to kick it over at 45 degrees, will this elbow match up?

Question by: Kirk L on Feb 18, 2026, 11:38 AM

For a 45 degree turn between BSPP threads, this fitting is set up as G 3/8-19 male on one side and G 3/8-19 female on the other, so it matches a 3/8 BSPP male to a 3/8 BSPP female connection.

Answer by: Customer Support on Feb 19, 2026, 1:12 PM
