45* Tube Elbow M.Bspp X F.Bspp 9047-04-04

Specifications

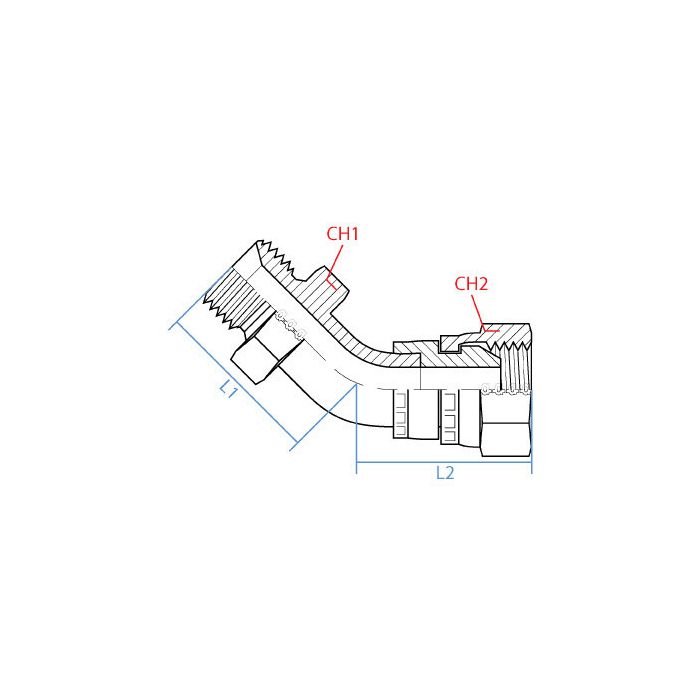

CH1 Width 19mm	CH2 Width 19mm	L1 Length 29mm	L2 Length 29mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9047-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

need a 45 degree elbow with g 1/4-19 threads on both ends. is this one male on one side and female on the other?

Question by: Tony R on Mar 18, 2026, 11:29 AM

For routing a line around a corner, this fitting gives you a 45° turn with a male G 1/4-19 BSPP on one end and a female G 1/4-19 BSPP on the other, so both sides stay the same thread callout and size.

Answer by: Customer Support on Mar 19, 2026, 9:15 PM

fitting's got a male end on one side and female on the other, that right? trying to figure out if i can thread something onto both ends or if one side is just for connecting into a port

Question by: Merle A on Sep 22, 2025, 6:15 PM

One end is a male G 1/4-19 BSPP thread and the other is female G 1/4-19 BSPP, both the same 1/4" size. So yes, you can thread a male fitting into the female end and thread the male end into a female port. It works as an extender or directional adapter depending on how your line is routed.

Answer by: Customer Support on Sep 24, 2025, 3:03 PM

Will this fitting hold up okay in a hydraulic system on a farm tractor? Just wanna make sure it's tough enough.

Question by: Ross H on Apr 18, 2025, 8:25 AM

Steel construction means this elbow fitting should be suitable for demanding hydraulic line applications. It's designed for reliable thread engagement where you need it.

Answer by: Customer Support on Apr 19, 2025, 7:52 PM
