90* M.Bspp Adj. X F.Bspp Swvl. 9046-16-16

Specifications

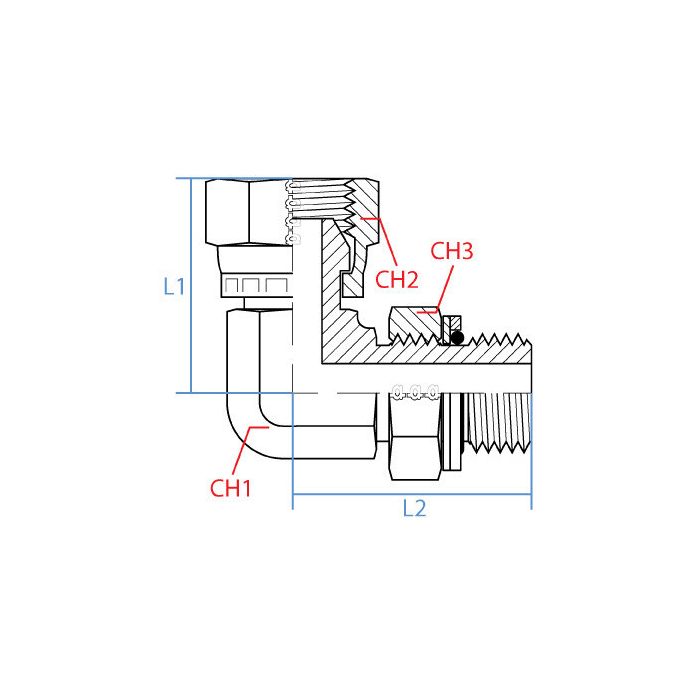

CH1 Width 33mm	CH2 Width 41mm	CH3 Width 41mm	L1 Length 50mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-16-16	Product Weight 1.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a hose run, is this the 90 degree elbow with a 1 inch BSPP male on one side and a 1 inch BSPP female swivel on the other?

Question by: Dale T on Jan 31, 2026, 8:56 AM

For a tight turn, this fitting gives you a 90° elbow with a G 1 - 11 male BSPP adjustable end on one side and a G 1 - 11 female BSPP swivel end on the other, both in 1 inch size.

Answer by: Customer Support on Feb 1, 2026, 4:43 PM

Got a 1" BSPP female port on a hydraulic block and need a 90-degree turn coming off it, this fitting work for that kind of hookup?

Question by: Janet H on Jul 15, 2025, 9:21 PM

Yeah, that's exactly what this fitting handles. One end is a 1" male BSPP adjustable, so it threads into your female port, and the other end is a 1" female BSPP swivel, which lets you connect your line at a 90-degree angle without fighting the orientation. The swivel end is real handy when you're trying to avoid twist stress on the hose during final assembly. Both thread callouts are G 1-11, so as long as your ports match that spec, you're in good shape.

Answer by: Customer Support on Jul 17, 2025, 6:04 AM
