90* M.Bspp Adj. X F.Bspp Swvl.

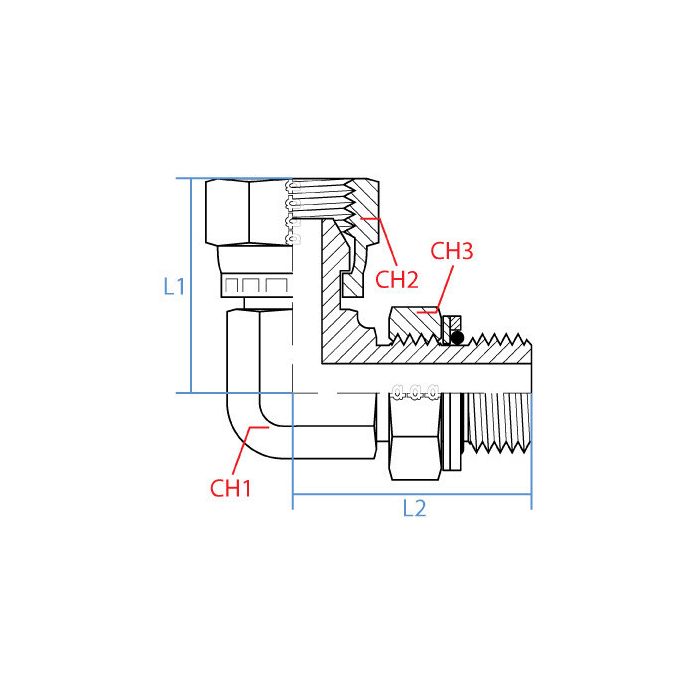

CH1 Width 27mm	CH2 Width 36mm	CH3 Width 32mm	L1 Length 47mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-12-12	Product Weight 0.80 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting handle hydraulic fluid okay, or is it more for like, water lines and stuff?

Question by: Cindy S on Jul 25, 2025, 12:34 PM

Manufactured in steel, this fitting is definitely made for hydraulic service and fluids. It's not just for water lines.

Answer by: Customer Support on Jul 26, 2025, 9:29 PM

both sides are 3/4 BSPP on this thing, right? just want to make sure I ain't dealing with a size change at the elbow before I order a handful of em

Question by: Rex G on Dec 5, 2025, 2:39 PM

Correct on both counts. The male adjustable end and the female swivel end are both G 3/4 - 14, so you're working with the same thread size straight through the elbow. No reducing, no step-up. If your line is running 3/4 BSPP on both sides of the connection point, this fitting keeps everything consistent without any adapter in between.

Answer by: Customer Support on Dec 6, 2025, 9:28 PM
