90* M.Bspp Adj. X F.Bspp Swvl.

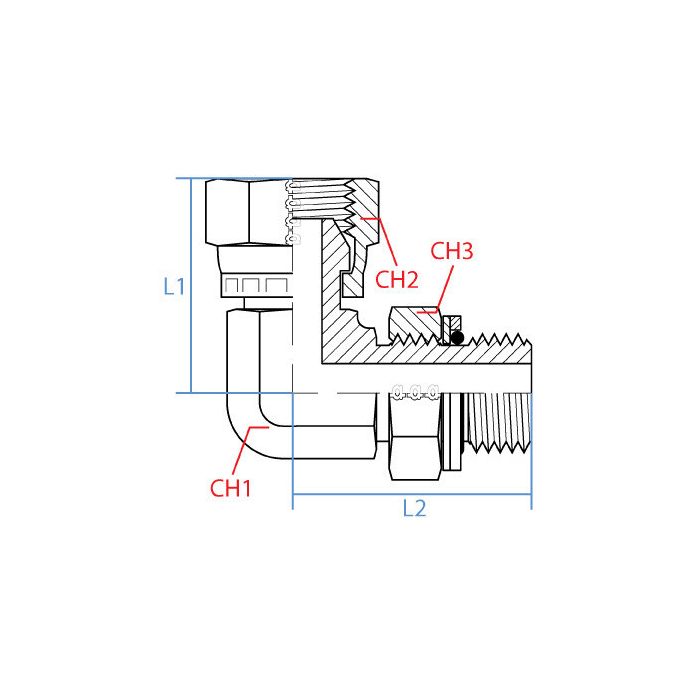

CH1 Width 22mm	CH2 Width 27mm	CH3 Width 27mm	L1 Length 40mm	L2 Length 35mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-08-08	Product Weight 0.50 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda material is this fitting made outta?

Question by: Brett D on Jun 24, 2025, 10:07 AM

This elbow fitting is made from steel.

Answer by: Customer Support on Jun 26, 2025, 6:59 AM

trying to replace a 90 elbow on a hose, is this one 1/2" bspP both sides with a swivel on the female end?

Question by: Cheryl B on May 4, 2025, 5:12 PM

It is a steel 90 degree elbow with G 1/2-14 BSPP on both ends, a 1/2 inch BSPP male adjustable on one side and a 1/2 inch BSPP female swivel on the other.

Answer by: Customer Support on May 6, 2025, 8:06 AM

what size wrenches am i gonna need to torque this thing down proper, the ch1 and ch2 flats aint the same are they

Question by: Hugh G on Dec 30, 2025, 8:31 AM

Right, they're different sizes. The Ch1 flat across the male adjustable end measures 22mm, so a 22mm wrench handles that side. The Ch2 and Ch3 flats are both 27mm, so you'll want a 27mm on the swivel end. Having both sizes on hand before you start saves a lot of fumbling around mid-install.

Answer by: Customer Support on Dec 31, 2025, 7:56 PM
