90* M.Bspp Adj. X F.Bspp Swvl.

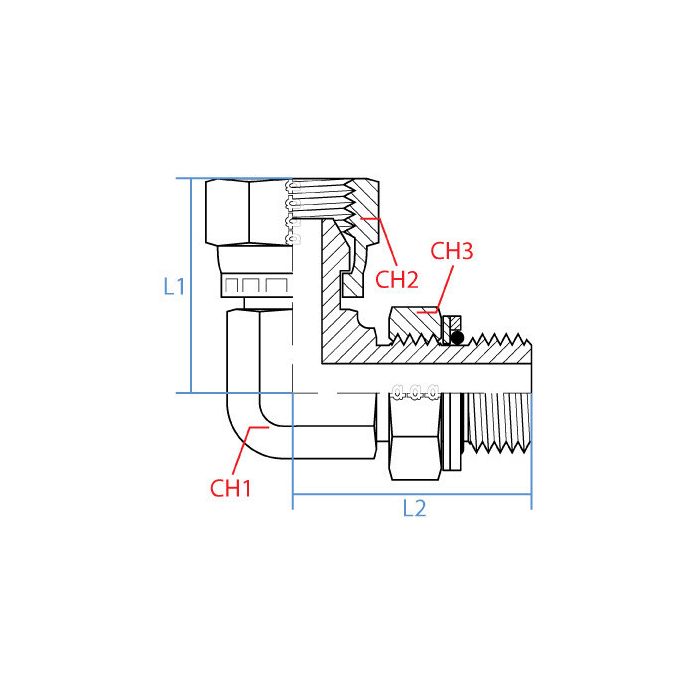

CH1 Width 19mm	CH2 Width 24mm	CH3 Width 22mm	L1 Length 38mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-06-06	Product Weight 0.30 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight corner on a hydraulic line where I need a 90 and both ends are BSPP threaded at 3/8, this the right part for that kind of setup?

Question by: Brett C on Dec 19, 2025, 1:45 PM

For a 90-degree turn between two 3/8" BSPP connections, yeah this fits that situation well. One end is a male BSPP adjustable, the other is a female BSPP swivel, both carrying a G 3/8-19 thread spec. The swivel end gives you some rotational flexibility during installation so you're not fighting the line to get everything lined up. Steel construction, so it holds up in working hydraulic environments without being finicky about it.

Answer by: Customer Support on Dec 21, 2025, 1:41 PM
