90* M.Bspp Adj. X F.Bspp Swvl.

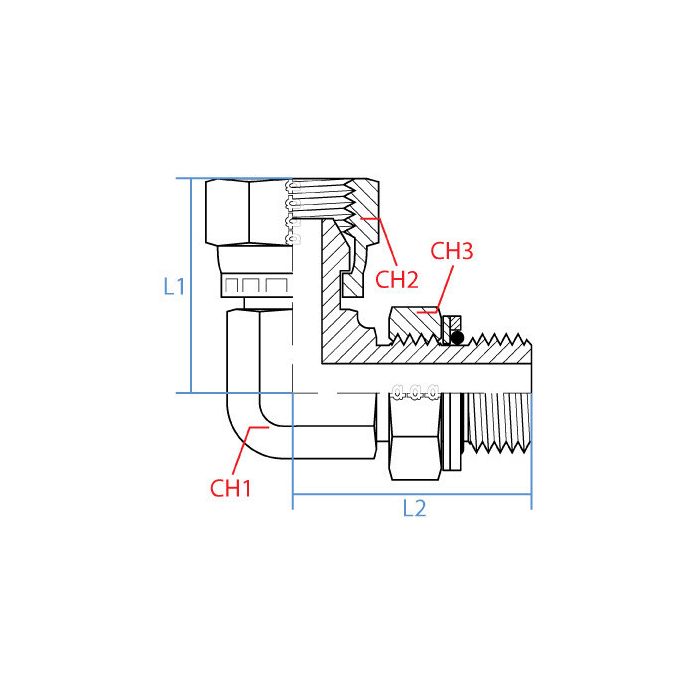

CH1 Width 14mm	CH2 Width 19mm	CH3 Width 19mm	L1 Length 29mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9046-04-04	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to tuck a line in close, is this the kind of 90 elbow that lets you clock the female end where you want it?

Question by: Dean R on Nov 28, 2025, 3:46 PM

With the female BSPP swivel on one side, you can rotate that end to line things up after you have the threads started, so you are not twisting the hose or hard line just to get the angle to land right. The 90 degree elbow shape is meant for tight routing where a straight fitting would fight you.

Answer by: Customer Support on Nov 30, 2025, 6:33 AM
