90* Tube Elbow M.Bspp X F.Bspp 9045-20-20

Specifications

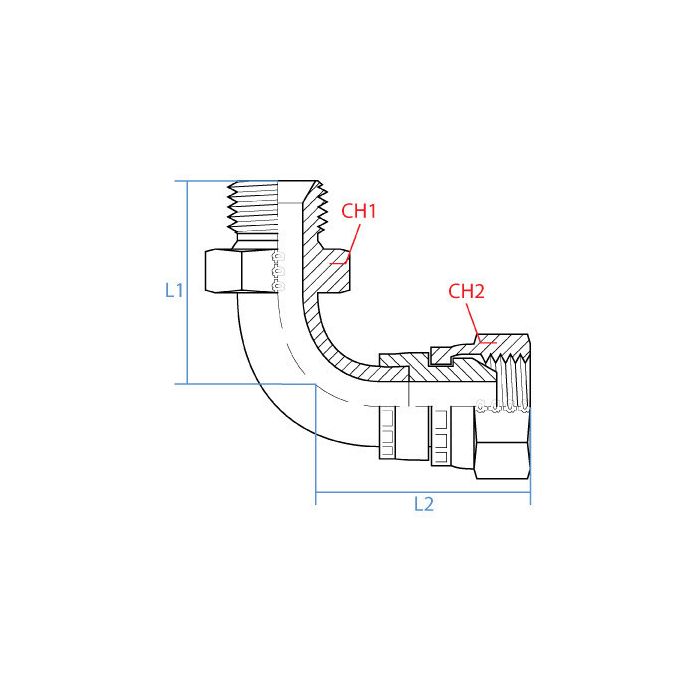

CH1 Width 50mm	CH2 Width 50mm	L1 Length 82mm	L2 Length 85mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9045-20-20	Product Weight 1.50 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a BSPP line that needs to make a hard turn but I ain't got room to run it straight, will this fitting let me keep the same thread size all the way through?

Question by: Shawn B on Jul 14, 2025, 6:29 PM

Same G 1-1/4 - 11 BSPP on both ends, so the thread size and type stay consistent through the turn. The male end threads into your existing female port and the female end accepts the next male fitting in line, letting you redirect the run 90 degrees without swapping to a different thread standard or upsizing anything. Steel construction and 50mm wrench flats on both sides make it straightforward to torque down in tight quarters.

Answer by: Customer Support on Jul 16, 2025, 5:14 PM

Will this elbow handle hydraulic fluid okay or is it for somethin' else?

Question by: Johnny M on Feb 25, 2026, 1:03 PM

This 90-degree elbow is constructed from steel, making it suitable for use in hydraulic circuits with hydraulic fluid.

Answer by: Customer Support on Feb 27, 2026, 7:30 AM

got a tight spot on a hydraulic run. is this elbow the kind that lets me turn 90 degrees without changing thread size?

Question by: Ralph B on Jul 1, 2025, 2:13 PM

For a right angle change in routing, it keeps the same thread on both ends: G 1-1/4 - 11 BSPP. One side is male BSPP and the other side is female BSPP, so it redirects the line without stepping the size up or down.

Answer by: Customer Support on Jul 2, 2025, 5:46 PM
