Female Bspp X Female Npt 9044-08-08

Specifications

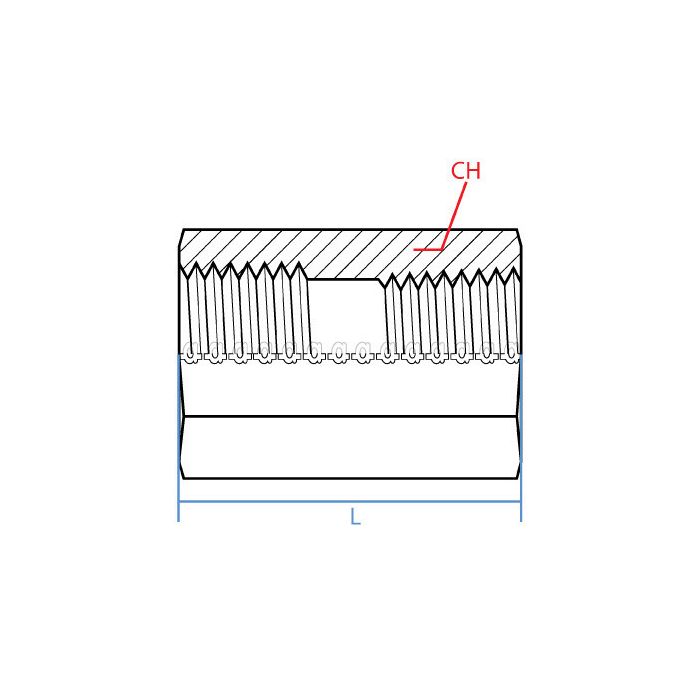

CH Width 28.5mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9044-08-08	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a machine running G 1/2 - 14 BSPP on one end and need to tie into a 1/2 NPT female port on the other, will this adapter handle that inline without me having to change out any fittings on either side?

Question by: Dean P on May 25, 2025, 8:24 PM

Both ports on this fitting are female, so it bridges a G 1/2 - 14 BSPP connection directly to a 1/2 - 14 NPTF port in a straight inline run. Neither side steps up or down in nominal size, so you're not introducing a diameter change into the line. Steel construction holds up well in standard hydraulic circuit assemblies. As long as your existing ports match those thread callouts, you can drop this in without modifying either side.

Answer by: Customer Support on May 27, 2025, 8:55 AM

Can this here fitting handle hydraulic pressures without leaking at the threads? I just want to make sure it's up to snuff.

Question by: Eddie G on Mar 11, 2026, 3:50 PM

This Adaptall adapter is constructed from steel, which provides the necessary durability for hydraulic circuit assemblies and industrial fluid power applications. It's designed to create a reliable connection between BSPP and NPTF threads.

Answer by: Customer Support on Mar 13, 2026, 6:38 AM
