Female Bspp X Female Npt 9044-04-04

Specifications

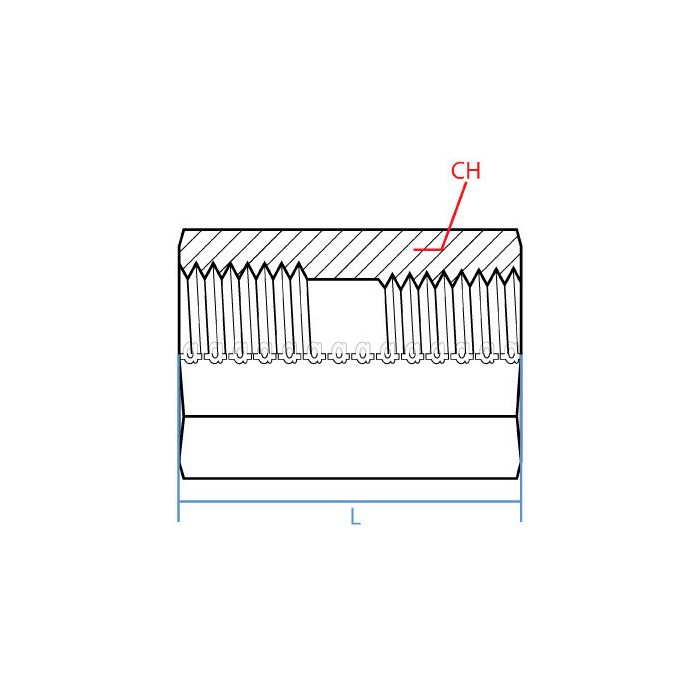

CH Width 19mm	L Length 28.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9044-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here adapter fit right if I'm tryin' to hook up a BSPP fitting to somethin' with NPT threads? Both sides are supposed to be 1/4 inch.

Question by: Scott W on Jan 24, 2026, 6:26 PM

It's designed for exactly that – connecting a 1/4" BSPP female port to a 1/4" NPT female port.

Answer by: Customer Support on Jan 26, 2026, 7:24 AM

both sides are female on this thing? just want to make sure before i order, got a male BSPP stud on my manifold and a male NPT fitting coming off the line

Question by: Daryl M on Jun 20, 2025, 3:57 PM

Both sides are female, so you'd need male threads on whatever you're connecting to on each end. One side accepts a G 1/4-19 male BSPP thread and the other takes a 1/4-18 male NPT thread. If your manifold has a male BSPP stud and your line fitting is male NPT, this adapter would sit right between them and make that conversion straight through.

Answer by: Customer Support on Jun 22, 2025, 6:55 AM

got a manifold port that’s G 1/4-19 BSPP female and my hose end is 1/4-18 NPTF female. is this the piece that lets em hook together?

Question by: Pete F on Aug 21, 2025, 9:47 AM

Built for straight-through thread conversion, it gives you a G 1/4-19 BSPP female port on one side and a 1/4-18 NPTF female port on the other, both in 1/4 inch size. That makes it a simple way to join BSPP-threaded components to NPT-threaded fittings or manifolds in the same line.

Answer by: Customer Support on Aug 23, 2025, 6:53 AM
