Male Bspt X Female Npt

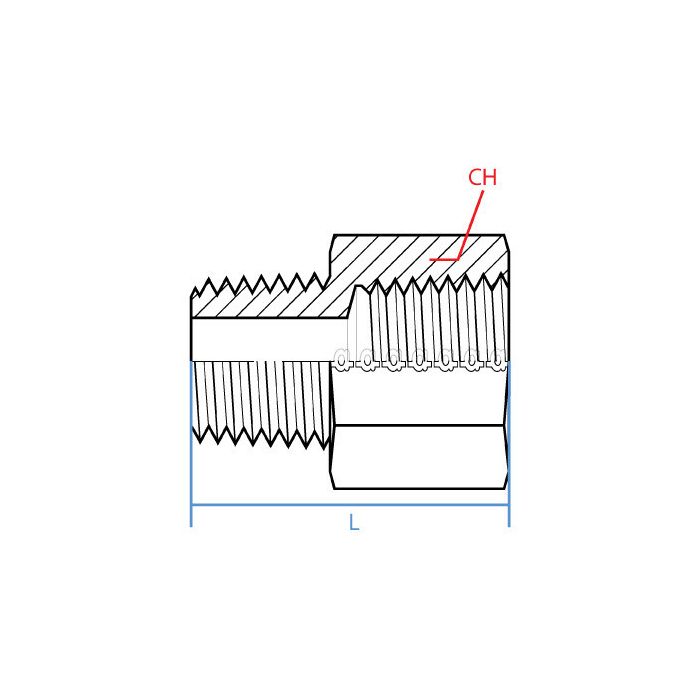

CH Width 35mm	L Length 53mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspt	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9042-12-12	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line coming off a British-made pump with BSPT threads and I need to tie into some NPT fittings on the American side of the system. This the right adapter for that?

Question by: Gene M on Oct 23, 2025, 6:06 PM

Straight connection, 3/4 inch on both ends, male BSPT going into a female NPT. That's exactly the crossover situation this fitting handles. The BSPT side carries an R 3/4-14 thread callout and the NPT side is 3/4-14 NPTF, so the two incompatible thread forms get bridged without any awkward intermediate pieces. Steel construction holds up fine in typical hydraulic line applications, and the 35mm wrench flat gives you something solid to torque against during install.

Answer by: Customer Support on Oct 25, 2025, 3:28 PM

Will this adapter hold up okay in a hydraulic setup?

Question by: Carl P on Nov 22, 2025, 4:49 PM

Steel construction means this adapter fitting should provide a robust connection for hydraulic applications.

Answer by: Customer Support on Nov 24, 2025, 6:09 AM
