Male Bspt X Female Npt

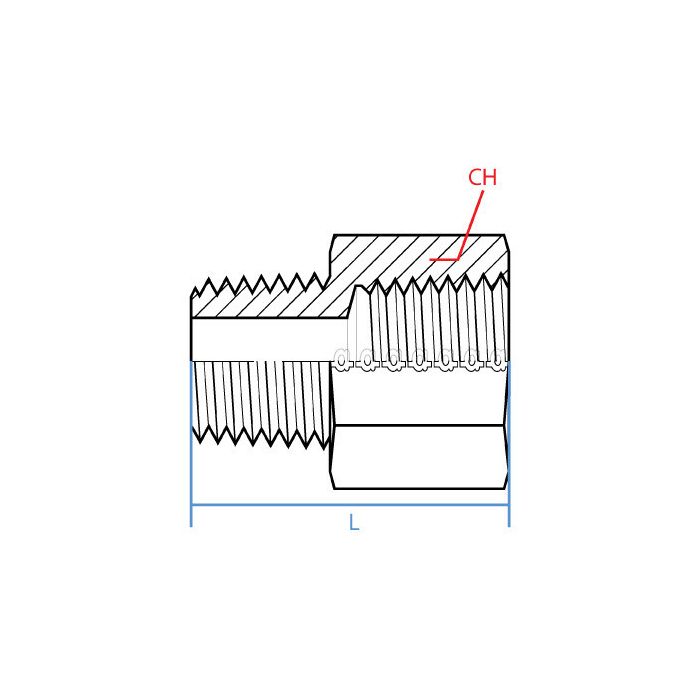

CH Width 27mm	L Length 32.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspt	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9042-12-08	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a piece of equipment running 3/4 BSPT fittings that needs to tie into a 1/2 NPT female port, this adapter do that job?

Question by: Bobby J on Feb 26, 2026, 7:07 AM

That's what this one's built for. The male end is R 3/4 - 14 BSPT and the female end accepts 1/2 - 14 NPTF, so you'd be threading the male side into your BSPT port and connecting your 1/2 NPT male fitting into the female end. Straight configuration, steel construction, and it comes from Adaptall so the threading tolerances are solid. Should drop right into that application without any fuss.

Answer by: Customer Support on Feb 27, 2026, 2:51 PM

got a hose end that’s R 3/4-14 BSPT on one side and i need to tie into a 1/2-14 NPTF port. is this the right adapter?

Question by: Gary C on Feb 24, 2026, 11:17 AM

Built for exactly that mix of threads, the adapter has a male R 3/4 - 14 BSPT on one end and a female 1/2 - 14 NPTF on the other, in a straight steel body.

Answer by: Customer Support on Feb 25, 2026, 3:53 PM
