Male Bspt X Female Npt

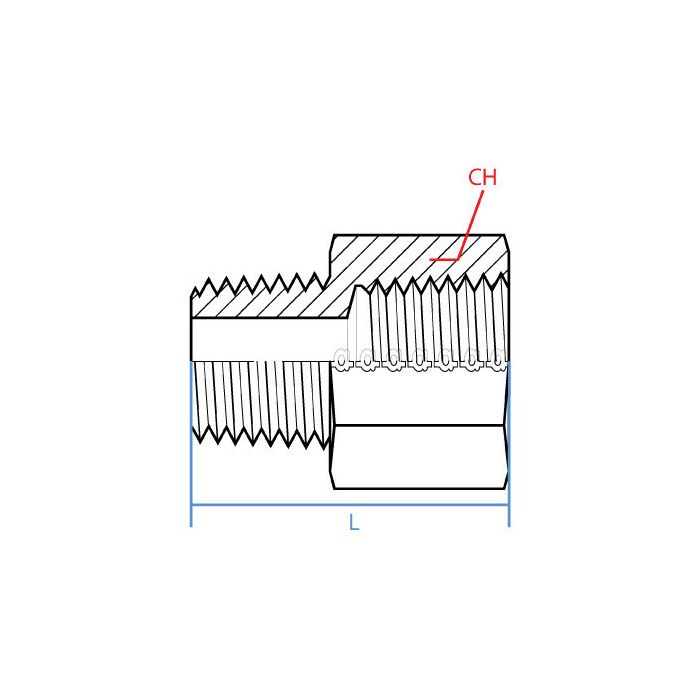

CH Width 17.5mm	L Length 23.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9042-06-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting let me hook up a British pipe thread to a regular ol' American one?

Question by: Frank A on Feb 11, 2026, 8:32 AM

That's exactly what this Adaptall fitting is for; it adapts between BSPT (British Standard Pipe Tapered) and NPT (National Pipe Tapered) thread types. On one side, it's got a 3/8" male BSPT connection, and on the other, it's a 1/8" female NPT connection.

Answer by: Customer Support on Feb 12, 2026, 9:27 PM

trying to hook a 3/8 BSPT line into a 1/8 NPT port, is this the right adapter?

Question by: Rod H on Feb 4, 2026, 9:12 AM

It’s meant for exactly that thread change. One end is a 3/8 inch male BSPT (R 3/8 - 19) and the other end is a 1/8 inch female NPT (1/8 - 27 NPTF), and it’s a straight steel fitting.

Answer by: Customer Support on Feb 5, 2026, 11:25 AM
