Male Bspt X Female Npt

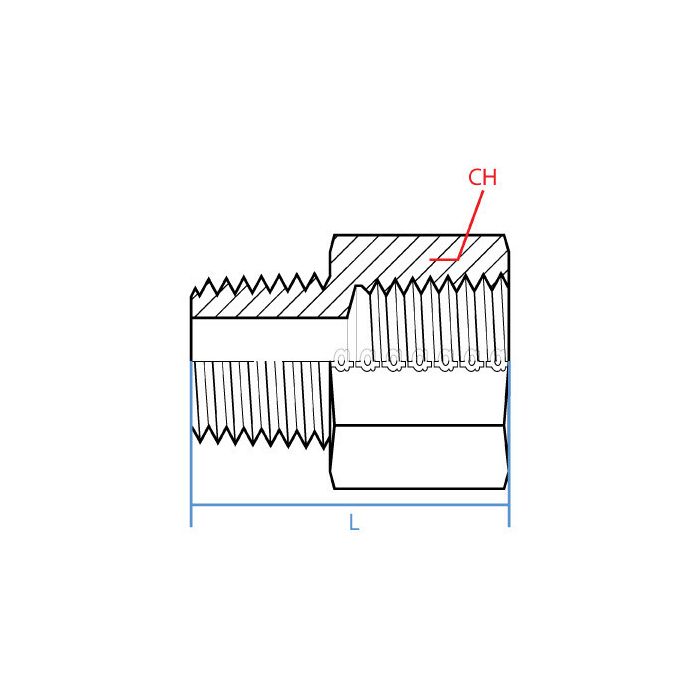

CH Width 14mm	L Length 22.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspt	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9042-04-02	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of steel is this fitting made out of? Just wondering how durable it is for what I need.

Question by: Cindy G on Apr 24, 2025, 2:52 PM

This adapter is crafted from high-quality steel, which provides good durability and resistance to wear in hydraulic applications.

Answer by: Customer Support on Apr 26, 2025, 7:04 AM

trying to hook a 1/4 bsp fitting into a 1/8 npt port, is this the right little adapter?

Question by: Bobby W on Mar 4, 2026, 5:56 PM

For that mix of threads, it matches up as a male BSPT on one side and a female NPTF on the other. Side 1 is R 1/4 - 19 (male) and side 2 is 1/8 - 27 NPTF (female), so it is meant to bridge a 1/4 BSPT male thread into a 1/8 NPT male connection.

Answer by: Customer Support on Mar 6, 2026, 10:24 AM
