Mbspp-Mbspp Bulkhead 3" Long 9040-20-20

Specifications

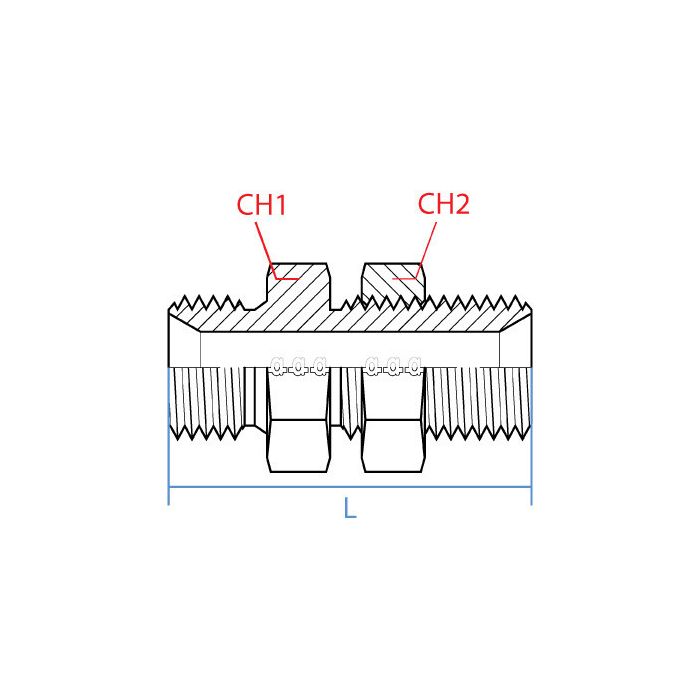

CH1 Width 50mm	CH2 Width 50mm	L Length 76.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9040-20-20	Product Weight 1.10 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends are male BSPP on this thing, right? just want to make sure i'm not misreading the specs before i order

Question by: Stan A on May 24, 2025, 10:06 AM

Correct on both counts. Each side carries a G 1-1/4 - 11 male BSPP thread at 1-1/4" nominal size, so you're getting a straight same-size male-to-male connection all the way through. No reducers or adapters needed if your panel connections are already set up for that thread on both faces.

Answer by: Customer Support on May 26, 2025, 6:11 AM

Is this thing solid steel all the way through? I need something that can take a beating.

Question by: Dustin R on Jun 12, 2025, 9:14 AM

Yes, this bulkhead fitting is constructed entirely from steel, so it's well-suited for demanding industrial applications where you need a secure and leak-resistant connection through a panel or enclosure.

Answer by: Customer Support on Jun 14, 2025, 8:20 AM

got a bulkhead pass-through job, is this one straight through with the same threads on both sides?

Question by: Lynn M on May 18, 2025, 6:33 PM

For a clean panel or wall pass-through, it gives you a straight, same-size connection on both ends. Both sides are male BSPP with a G 1-1/4 - 11 thread callout, so thread engagement stays consistent from one side of the bulkhead to the other.

Answer by: Customer Support on May 19, 2025, 7:20 PM
