Male Bspp X Male Bspp Bulkhead 9040-16-16

Specifications

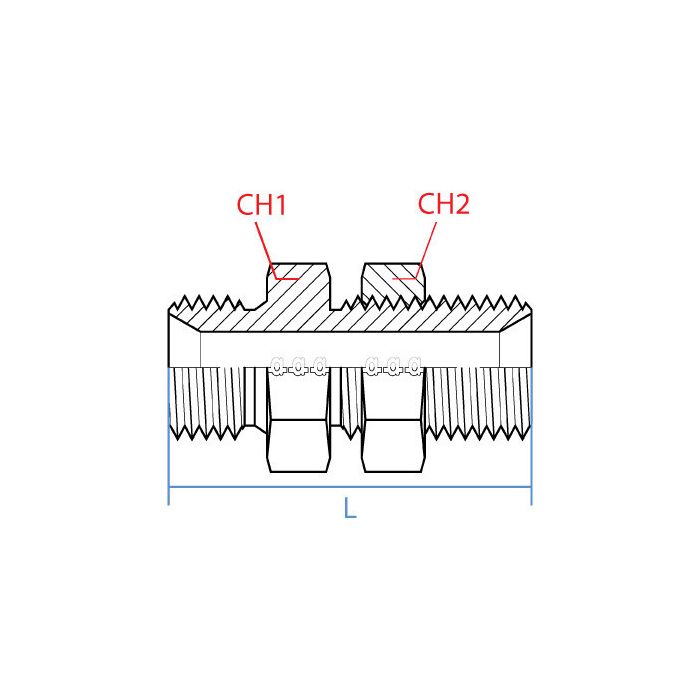

CH1 Width 41mm	CH2 Width 41mm	L Length 74mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9040-16-16	Product Weight 0.80 lbs

Product Questions & Answers 3

Product Questions & Answers

What size ports does this bulkhead fitting work with on both ends?

Question by: Freddie S on Jun 19, 2025, 2:31 PM

Both sides are 1 inch BSPP, with a thread callout of G 1-11 on each end. So you're getting a straight-through connection, same size all the way across, which keeps things simple when you're running BSPP ports through a panel or barrier.

Answer by: Customer Support on Jun 21, 2025, 6:20 AM

trying to run a line through a bracket, is this the kind of bulkhead fitting that lets you pass a BSPP port through a panel?

Question by: Kent S on May 17, 2025, 1:42 PM

For routing through a barrier, it’s a straight steel bulkhead fitting meant to connect through a panel or wall. You get male BSPP threads on both ends so you can bring a BSPP connection from one side to the other.

Answer by: Customer Support on May 19, 2025, 6:05 AM

What kind of material is this bulkhead fitting made out of? Just making sure it'll hold up.

Question by: Randy G on Feb 5, 2026, 12:16 PM

It's made of steel, so it's built to be pretty durable for hydraulic applications.

Answer by: Customer Support on Feb 6, 2026, 7:09 PM
