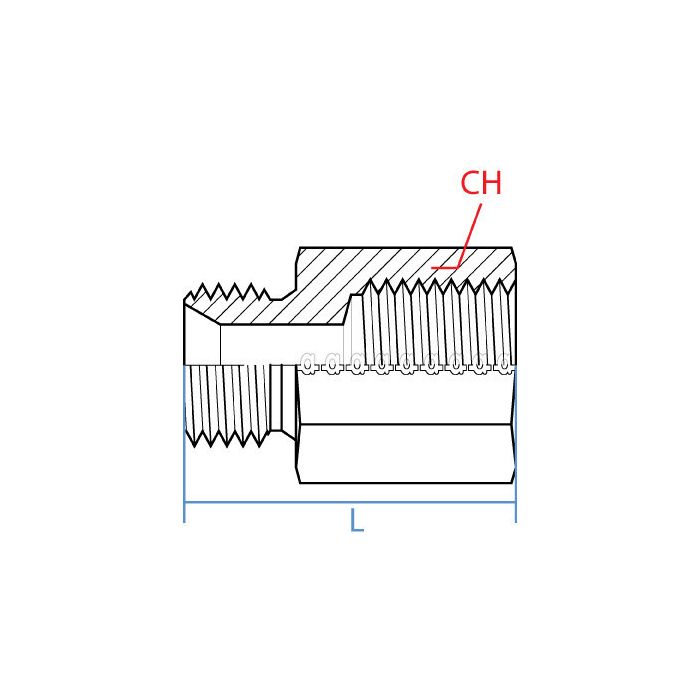

Extended Mbspp-Fbspp Bushing

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1-1/4 - 11	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-08-20	Product Weight 0.56 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to figure out if this'll work as a step-down adapter between a 1-1/4" BSPP port and a 1/2" BSPP male fitting, that what this bushing does?

Question by: Todd A on May 31, 2025, 2:40 PM

That's the job. The female end accepts a G 1-1/4 - 11 BSPP connection, and the male end is G 1/2 - 14 BSPP, so it reduces from the larger port down to the smaller male thread. Steel construction from Adaptall, straight profile, threads in clean. Pretty standard adapter for bridging those two BSPP sizes in a hydraulic line.

Answer by: Customer Support on Jun 1, 2025, 8:04 PM

Will this here fitting work to connect a 1/2" male BSPP to a 1-1/4" female BSPP?

Question by: Tony M on Dec 27, 2025, 9:13 PM

Yes sir, it will. This Adaptall bushing is made for just that purpose, to reliably connect those two different sizes of BSPP connections.

Answer by: Customer Support on Dec 29, 2025, 6:57 AM
