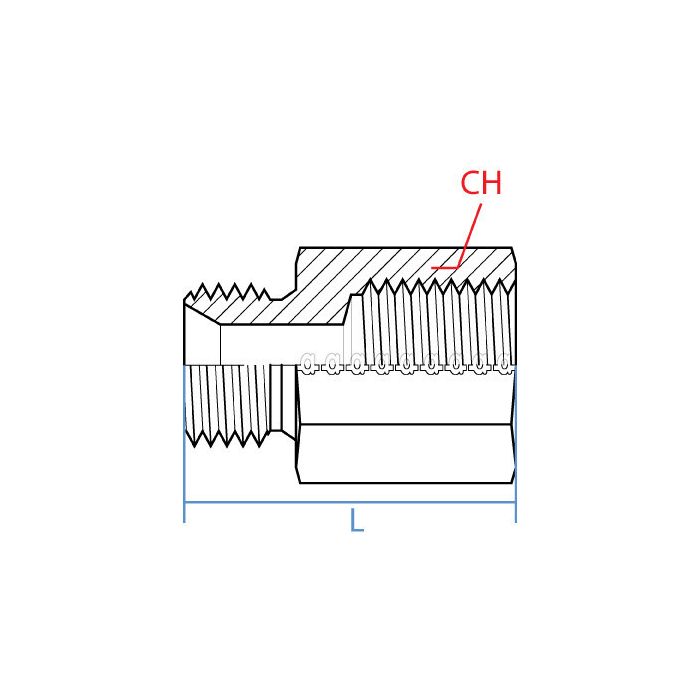

Extended Mbspp-Fbspp Bushing

CH Width 32mm	L Length 41.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-06-12	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/8 BSPP male into a 3/4 BSPP female port, is this the right bushing for that?

Question by: Janet F on Dec 11, 2025, 9:16 AM

For stepping between those two BSPP thread sizes, it matches that setup: one end is a male BSPP G 3/8 - 19 and the other end is a female BSPP G 3/4 - 14, in a straight steel bushing.

Answer by: Customer Support on Dec 12, 2025, 2:38 PM

Will this here bushing work with regular BSP fittings, or does it have to be BSPP?

Question by: Bonnie J on May 9, 2025, 6:40 AM

This Adaptall bushing uses BSPP (British Standard Parallel Pipe) threads on both ends, so it's designed to mate with other BSPP fittings.

Answer by: Customer Support on May 10, 2025, 6:39 PM
