Extended Mbspp-Fbspp Bushing

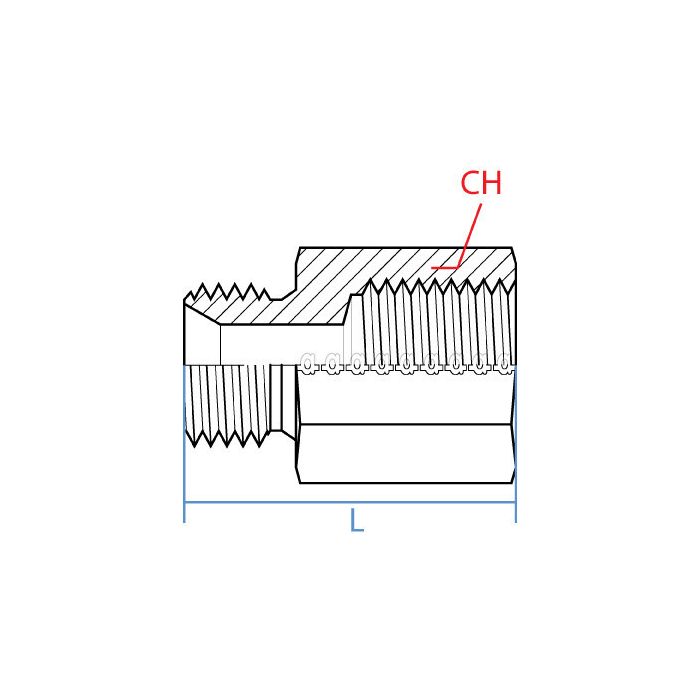

CH Width 22mm	L Length 34.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9039-04-06	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a 3/8 BSPP port on a manifold block and need to run a 1/4 BSPP line off it, will this bushing handle that transition straight through?

Question by: Howard A on Apr 10, 2025, 9:45 PM

That's exactly what it's built for. The female end is G 3/8 - 19 BSPP and the male end is G 1/4 - 19 BSPP, so it steps down from the larger port to the smaller line in a single piece. Steel construction holds up fine in hydraulic circuits and industrial fluid systems, and the straight body keeps the flow path direct with no angle change. At 34.8mm long with a 22mm across-flats, it gives you more thread engagement than a standard short hex bushing, which can matter when clearance around the port is tight.

Answer by: Customer Support on Apr 12, 2025, 7:35 PM
