Male Bspp X Fem. Bspp Bushing

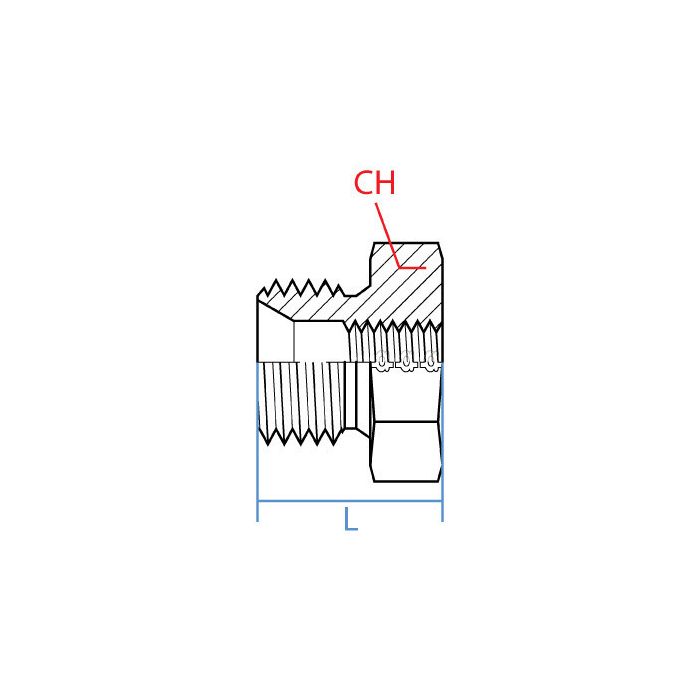

CH Width 41mm	L Length 32.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9038-16-06	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

What size ports does this bushing connect exactly? One end looks like a full inch but I wanna make sure before I order.

Question by: Denise H on Mar 31, 2026, 3:46 PM

You've got it right. The male end threads into a 1-inch BSPP port with a G 1 - 11 thread, and the female end accepts a 3/8-inch BSPP fitting with a G 3/8 - 19 thread. So it steps down from the larger 1-inch male side to a smaller 3/8-inch female side. Both connections are BSPP, so as long as your ports match those specs, this bushing drops right in.

Answer by: Customer Support on Apr 2, 2026, 6:52 AM
