Male Npt X Fixed Female Bspp

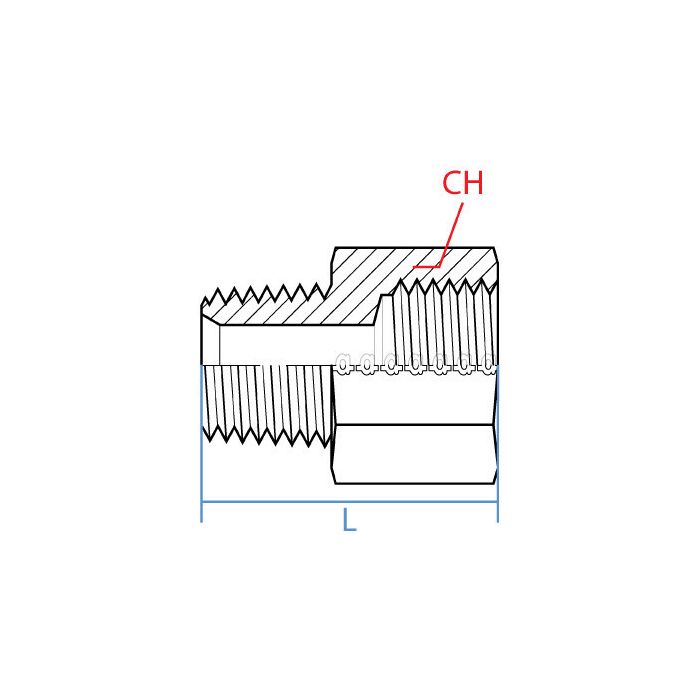

CH Width 35mm	L Length 35.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1 - 11.5 NPTF	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Npt	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9037-16-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a piece of equipment with a 3/4" BSPP port on it and need to tie into some 1" NPT fittings on the line. This straight adapter gonna work for that hookup?

Question by: Hugh B on Jul 7, 2025, 6:17 AM

That's exactly what this fitting is built for. One end is 1" Male NPT running 1-11.5 NPTF threads, and the other is a 3/4" Fixed Female BSPP at G 3/4-14. So yeah, it bridges those two thread standards in a straight inline configuration without any routing gymnastics. The fixed female BSPP end does not swivel, so you'll want your port orientation sorted out before you wrench it down.

Answer by: Customer Support on Jul 9, 2025, 6:42 AM

Reckon this would work to hook up a NPT fitting to somethin' with BSPP threads?

Question by: Rick P on Jun 10, 2025, 3:16 PM

Yes, this straight adapter is designed to connect a 1" Male NPT to a 3/4" Fixed Female BSPP thread.

Answer by: Customer Support on Jun 12, 2025, 8:59 AM
