Male Bspp X Female O-Ring Boss 9036-20-20

Specifications

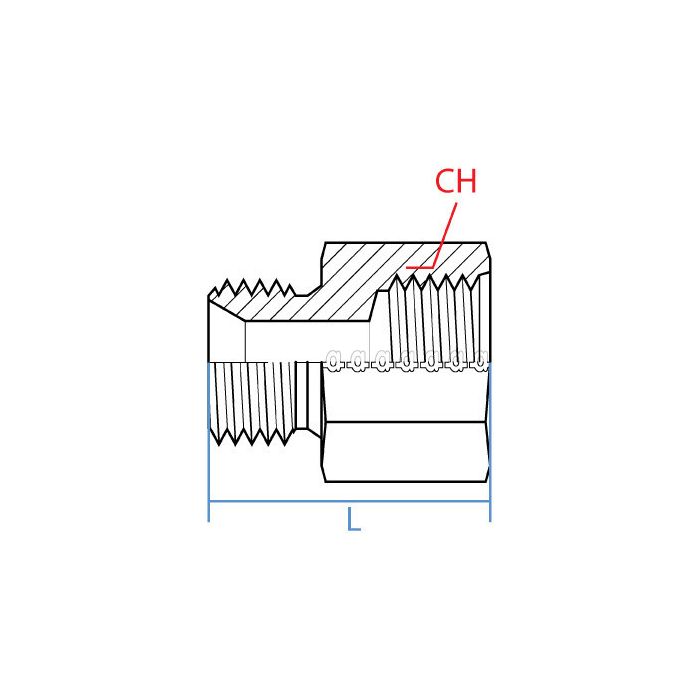

CH Width 51mm	L Length 62.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout 1-5/8 - 12 UN	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9036-20-20	Product Weight 0.95 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a BSPP fitting to an o-ring boss port?

Question by: Rusty C on May 11, 2025, 6:24 AM

This straight steel adapter is designed to connect a male BSPP fitting to a female O-ring boss port.

Answer by: Customer Support on May 12, 2025, 11:29 AM

adapter's got a G 1-1/4 - 11 thread on one end and a 1-5/8 - 12 UN on the other -- does that mean it'll bridge a BSPP port straight into an SAE O-Ring Boss fitting without any extra hardware?

Question by: Phil H on Mar 26, 2026, 9:30 PM

Correct on both thread callouts. The male side runs G 1-1/4 - 11, which is the standard BSPP thread form, and the female side takes a 1-5/8 - 12 UN SAE O-Ring Boss connection. Straight configuration means no offset or angle, so it drops right between those two port types in a direct line. No additional adapters needed for that transition.

Answer by: Customer Support on Mar 28, 2026, 8:21 PM

trying to match up fittings here. what exactly are the two ends on this adapter?

Question by: Dean Y on Nov 30, 2025, 6:29 AM

On one side you get a male BSPP connection called out as G 1-1/4 - 11. The other side is a female ORB SAE connection with a 1-5/8 - 12 UN thread callout, sized as 1-1/4.

Answer by: Customer Support on Dec 1, 2025, 10:27 AM
