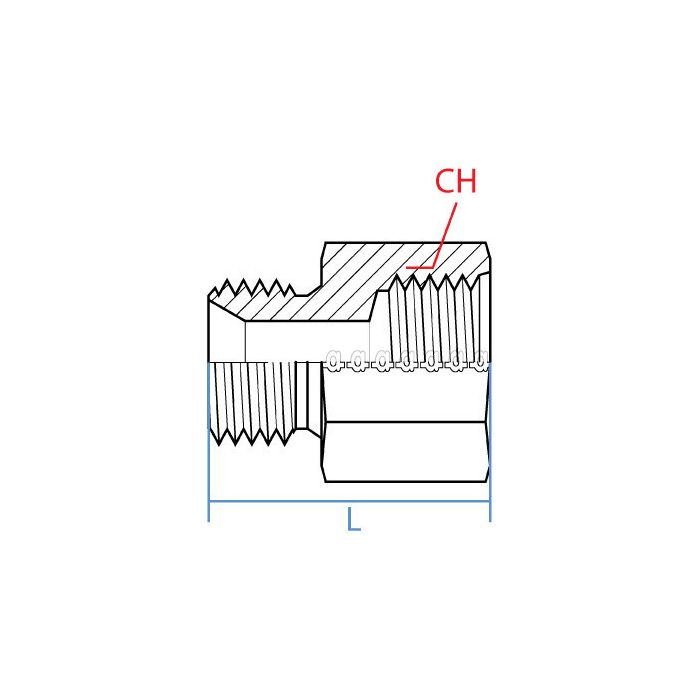

Male Bspp X Female O-Ring Boss

CH Width 41mm	L Length 54.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9036-16-16	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 1 inch BSPP male port on a pump and need to tie into a system that runs SAE O-Ring Boss fittings. this the right adapter to bridge that gap?

Question by: Gene M on Jan 16, 2026, 1:03 PM

For that exact crossover, yes. One end of this adapter is a 1 inch male BSPP thread, spec'd at G 1-11, and the other end is a 1 inch female O-Ring Boss at 1-5/16-12 UN. Steel construction, straight configuration, so you're not adding any bends or offsets to the line. Fits right in line between those two thread standards without any additional hardware.

Answer by: Customer Support on Jan 17, 2026, 7:27 PM

So this is steel, right? Just wanna make sure it'll hold up okay outside.

Question by: Jerry H on Nov 28, 2025, 6:02 PM

Constructed from steel, this Adaptall fitting should provide good durability in typical outdoor conditions. However, consider the specific environmental factors and potential exposure to corrosive elements in your area.

Answer by: Customer Support on Nov 29, 2025, 9:36 PM
