Male Bspp X Female O-Ring Boss

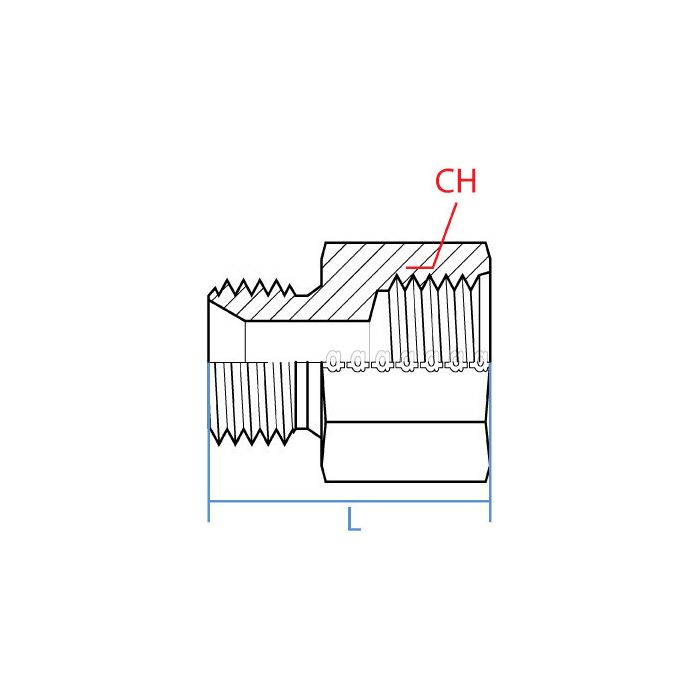

CH Width 24mm	L Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9036-06-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment with a G 3/8-19 port on the pump and a 9/16-18 UNF ORB fitting on the line side. this the right adapter to tie those two together?

Question by: Lee W on Aug 1, 2025, 7:28 AM

That's what this fitting is built for. One end carries a male BSPP thread at G 3/8-19 and the other is a female O-Ring Boss port sized at 9/16-18 UNF, so it bridges those two connection types in a straight run. The female ORB end uses a standard SAE o-ring seal, which keeps things tight at that joint. Steel construction handles general hydraulic service without any fuss.

Answer by: Customer Support on Aug 2, 2025, 3:12 PM
