Male Bspp X Female O-Ring Boss

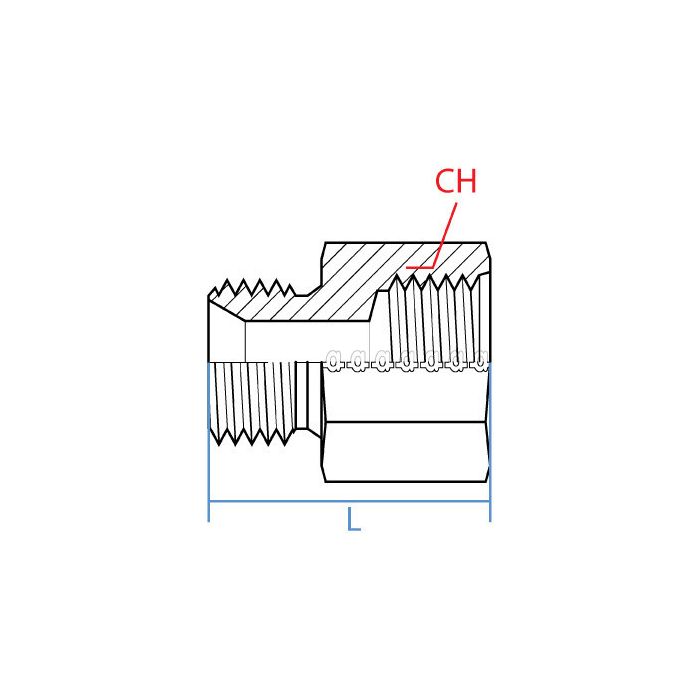

CH Width 24mm	L Length 32.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9036-04-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a fitting on a little hydraulic setup, is this one the straight adapter that goes from G 1/4 - 19 to 9/16 - 18 UNF?

Question by: Lyle T on Mar 16, 2026, 7:33 AM

You are looking at a straight steel adapter with a male BSPP on Side 1 and a female O-Ring Boss (ORB-SAE) on Side 2. Side 1 is G 1/4 - 19 male, and Side 2 is 9/16 - 18 UNF female, which is the thread callout used for 3/8 ORB.

Answer by: Customer Support on Mar 17, 2026, 10:37 AM
