Male Bspp X Female O-Ring Boss

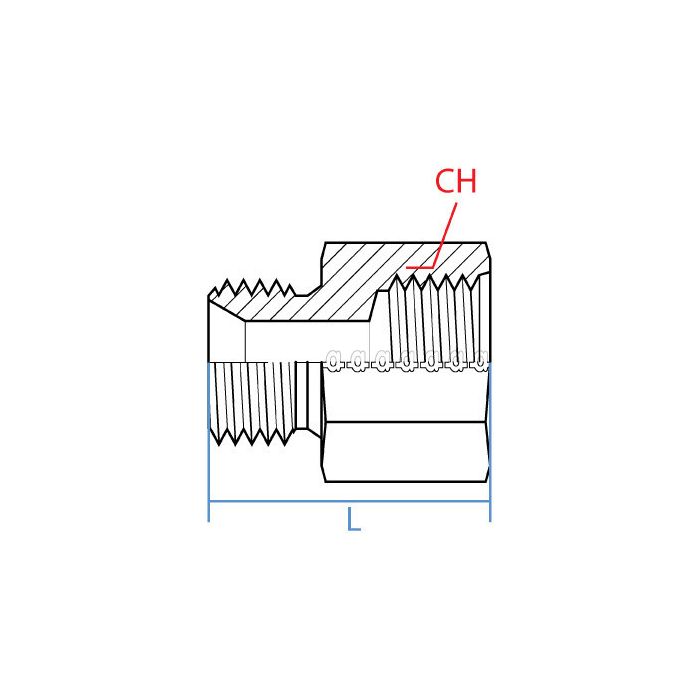

CH Width 19mm	L Length 31.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Orb-Sae	Alternate Part Numbers Alternate Part Number MI-03518807, Alternate Part Number MINO-03671X85201	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9036-04-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running G 1/4 BSPP on one end and need to tie into a 7/16-20 ORB port on a valve block. this adapter gonna bridge that gap straight across?

Question by: Hugh G on May 22, 2025, 8:06 PM

Yeah, that's exactly what this one's built for. One side is a G 1/4-19 male BSPP thread and the other is a 7/16-20 UNF female ORB-SAE port, so you're connecting those two standards directly without any intermediate fittings. It runs straight through, no angle or offset, and the steel construction holds up well in working hydraulic environments. At 31.9mm long and 19mm across the wrench flats, it fits into tight spots without a lot of fuss.

Answer by: Customer Support on May 24, 2025, 3:17 PM
