Male Bspp X Female Npt

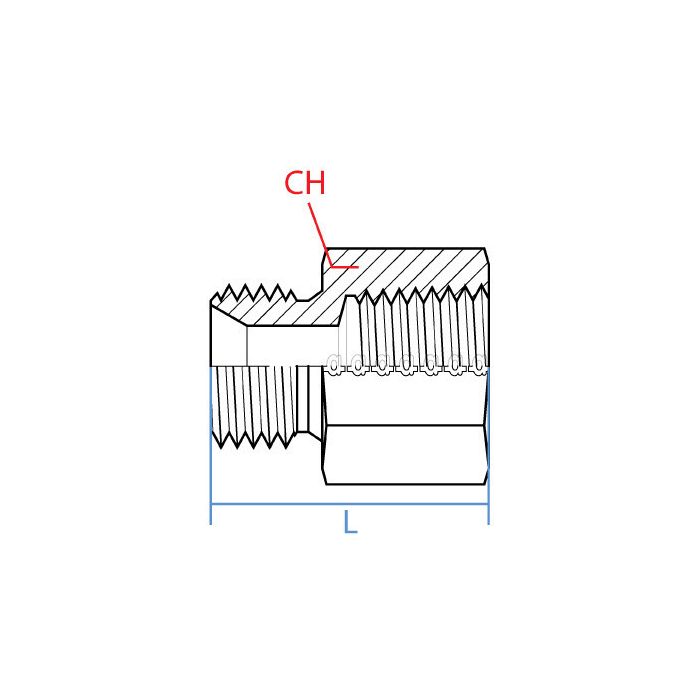

CH Width 89mm	L Length 60.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3 - 11	Side 1 Gender M	Side 1 Size 3"	Side 1 Type Bspp	Side 2 Callout 2 - 11.5 NPTF	Side 2 Gender F	Side 2 Size 2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-48-32	Product Weight 2.64 lbs

Product Questions & Answers 2

Product Questions & Answers

got a pump with a G 3-11 port and i need to tie into 2 inch NPT on the other side. is this the right adapter?

Question by: Cindy T on Jun 29, 2025, 3:44 PM

For that mix of threads, it matches up as a straight steel adapter with a G 3-11 BSPP male on Side 1 and a 2-11.5 NPTF female on Side 2, so it is meant to bridge a 3 inch BSPP connection over to a 2 inch NPT connection.

Answer by: Customer Support on Jun 30, 2025, 9:24 PM

Got a piece of equipment running 3-inch BSPP fittings and need to tie into a 2-inch NPT line. this adapter gonna bridge that gap straight up?

Question by: Lee F on Sep 22, 2025, 6:43 AM

That's exactly what it's built for. One end carries a G 3-11 male BSPP thread, and the other is a 2-11.5 NPTF female NPT thread, so you're covered on both sides of that cross-standard connection. The straight configuration keeps the hydraulic connections clean without adding any angle or offset into the run. Steel construction holds up in the kind of hydraulic and industrial fluid environments where that thread transition needs to stay tight and reliable.

Answer by: Customer Support on Sep 23, 2025, 8:50 PM
