Male Bspp X Female Npt 9035-20-20

Specifications

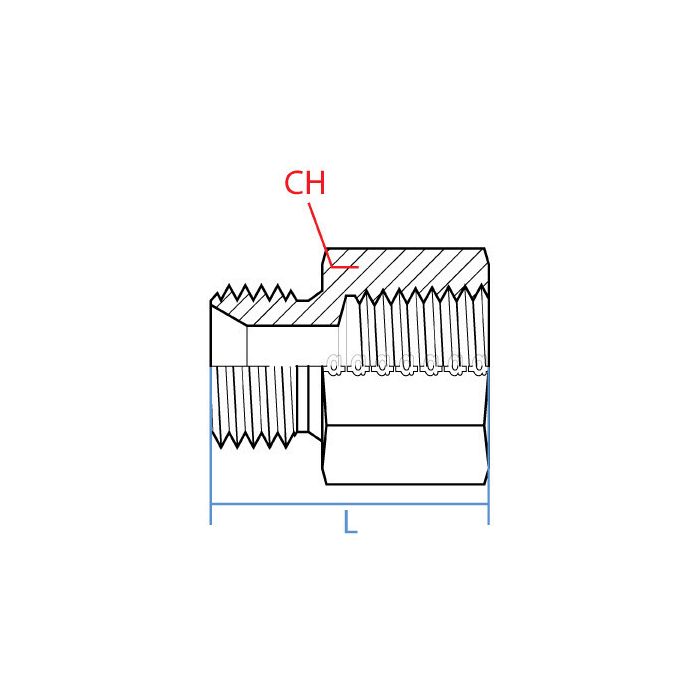

CH Width 51mm	L Length 61.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1-1/4 - 11	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Bspp	Side 2 Callout 1-1/4 - 11.5 NPTF	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-20-20	Product Weight 1.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a pump port that’s G 1-1/4 (BSPP). will this adapter let me hook up a 1-1/4 nptf line to it?

Question by: Scott G on May 31, 2025, 8:15 PM

For tying those two thread standards together, it’s a straight steel adapter with a male G 1-1/4 - 11 BSPP on one side and a female 1-1/4 - 11.5 NPTF on the other.

Answer by: Customer Support on Jun 2, 2025, 4:55 PM

So this has a male BSPP end and a female NPT end, both 1-1/4"? Just want to make sure I'm reading that right.

Question by: Kurt C on Jul 13, 2025, 9:21 AM

You're spot on. This adapter features a male 1-1/4" BSPP connection on one side and a female 1-1/4" NPT connection on the other.

Answer by: Customer Support on Jul 15, 2025, 6:16 AM

Got a piece of equipment running a 1-1/4 inch BSPP port and need to tie into a NPT female fitting on the other end, this the right adapter for that?

Question by: Scott S on Apr 30, 2025, 10:34 AM

That's what this one's built for. One end is a male 1-1/4" BSPP, which carries the G 1-1/4 - 11 thread spec, and the other end is a female 1-1/4" NPT at 1-1/4 - 11.5 NPTF. Both sides are the same nominal size, so you're connecting like-sized ports across two different thread standards. It's a straight adapter, no bends or offsets, and it's made from steel.

Answer by: Customer Support on May 2, 2025, 10:21 AM
