Male Bspp X Female Npt 9035-12-04

Specifications

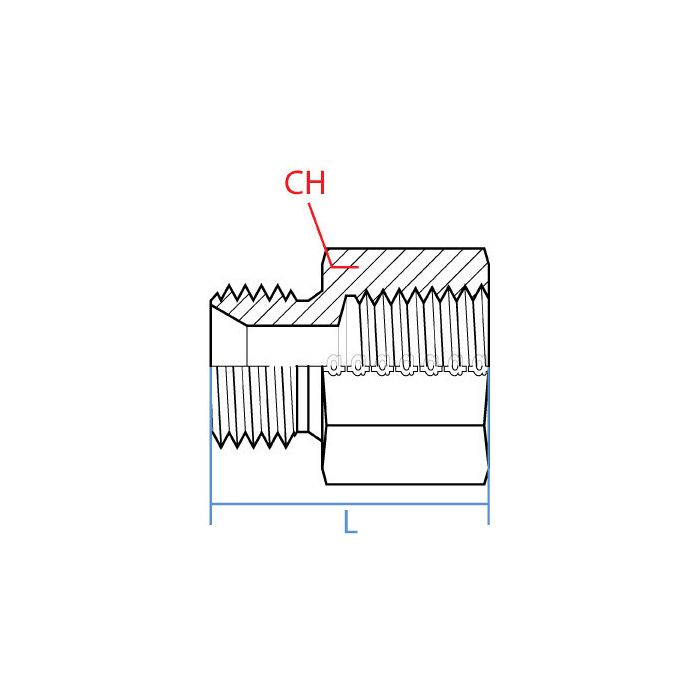

CH Width 32mm	L Length 28.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-12-04	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie into a port that’s G 3/4-14 on one side, will this adapter get me over to a 1/4-18 NPTF female?

Question by: Hubert C on Jun 11, 2025, 2:13 PM

Built for that exact thread change, it has a 3/4 inch male BSPP end (G 3/4-14) and a 1/4 inch female NPT end (1/4-18 NPTF), in a straight steel adapter.

Answer by: Customer Support on Jun 13, 2025, 6:07 AM

Got a BSPP port on a hydraulic component and need to tie into a 1/4" NPT line. This adapter work for that?

Question by: Eddie S on Jan 8, 2026, 7:22 AM

That's exactly the situation this piece is built for. One end is a 3/4" male BSPP thread (G 3/4-14) and the other is a 1/4" female NPT (1/4-18 NPTF), so you'd be threading the BSPP end into your component and running your NPT line into the female end. Steel construction holds up fine in hydraulic circuit use. Just keep in mind you're stepping down from 3/4" to 1/4", so make sure that reduction works with your flow requirements before you button everything up.

Answer by: Customer Support on Jan 9, 2026, 7:39 AM

Will this adapter handle hydraulic pressures without leaking, or is it more for lower-pressure applications?

Question by: Duane P on Jul 25, 2025, 10:22 AM

Constructed from steel, this adapter is well-suited for demanding hydraulic circuit environments where you need to connect British and North American thread standards.

Answer by: Customer Support on Jul 27, 2025, 6:23 AM
