Male Bspp X Female Npt

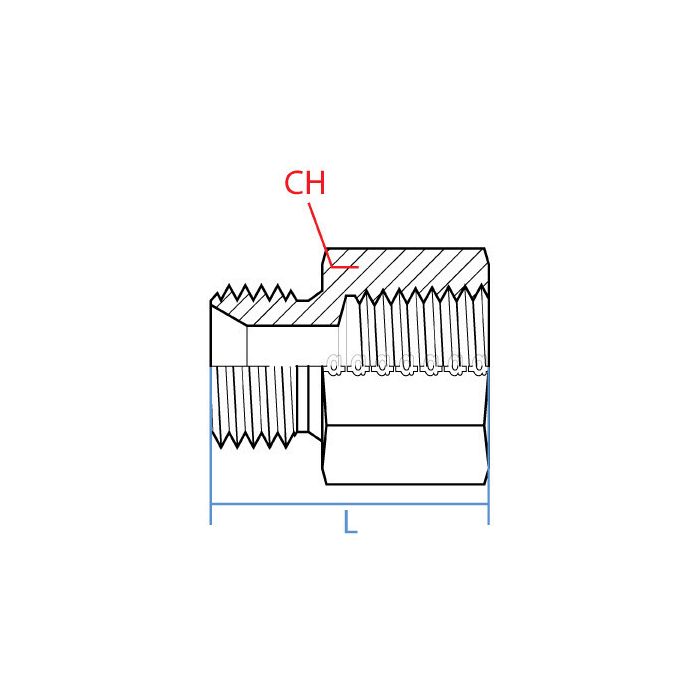

CH Width 28.5mm	L Length 30.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number 3455-08-04	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-08-04	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a valve with a G 1/2 - 14 port and my hose end is 1/4 - 18 NPTF, is this the right adapter to marry those up?

Question by: Frank R on Jun 12, 2025, 5:26 PM

For tying those two thread standards together, this adapter is made for exactly that combo: a G 1/2 - 14 male BSPP on one side and a 1/4 - 18 NPTF female on the other, in a straight steel body.

Answer by: Customer Support on Jun 14, 2025, 4:35 PM
