Male Bspp X Female Npt 9035-06-08

Specifications

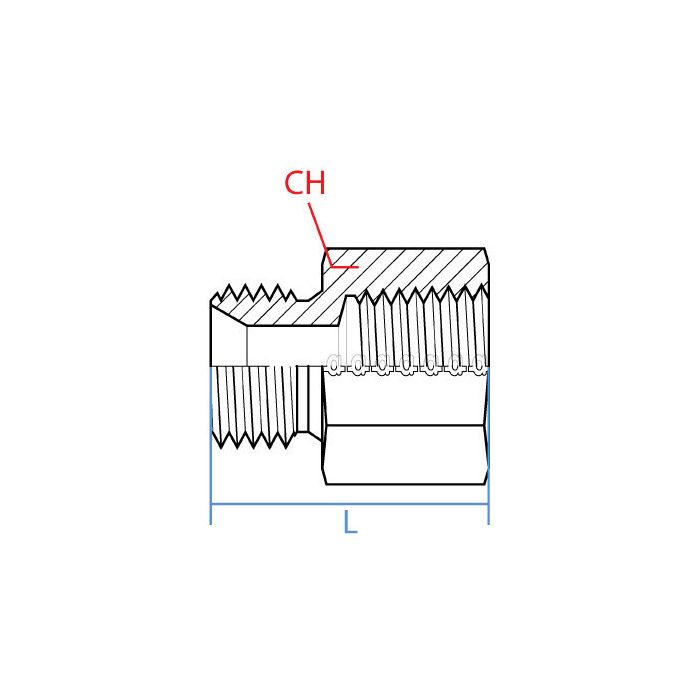

CH Width 28.5mm	L Length 41.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-06-08	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this adapter hold up okay in a hydraulic system running at, say, 2000 PSI?

Question by: Gary J on Sep 21, 2025, 12:46 PM

Steel construction makes this adapter suitable for demanding industrial environments, especially where you need that pressure-tight mechanical seal between BSPP and NPTF threads in hydraulic lines.

Answer by: Customer Support on Sep 22, 2025, 8:44 PM

Got a piece of equipment running BSPP ports and I need to tie into a half-inch NPT line. This the right adapter to make that work?

Question by: Pete R on Apr 18, 2025, 10:29 AM

For that exact situation, yes. One end is a 3/8" Male BSPP (G 3/8-19) and the other is a 1/2" Female NPT (1/2-14 NPTF). So you'd thread the BSPP end into your equipment's port and run your NPT line into the female end. The NPTF thread form on the NPT side is built for a pressure-tight mechanical seal, which makes it a solid choice for hydraulic lines where you can't afford a weeping connection.

Answer by: Customer Support on Apr 19, 2025, 4:51 PM

got a hose end that’s G 3/8-19 BSPP male, will this let me hook into a 1/2-14 NPTF female port?

Question by: Larry H on Apr 13, 2025, 4:06 PM

Function-wise, yes. It is a straight steel adapter with a 3/8 inch Male BSPP (G 3/8-19) on one end and a 1/2 inch Female NPT (1/2-14 NPTF) on the other, so it is meant to bridge those two thread standards in a hydraulic connection.

Answer by: Customer Support on Apr 15, 2025, 6:57 AM
