Male Bspp X Female Npt 9035-02-02

Specifications

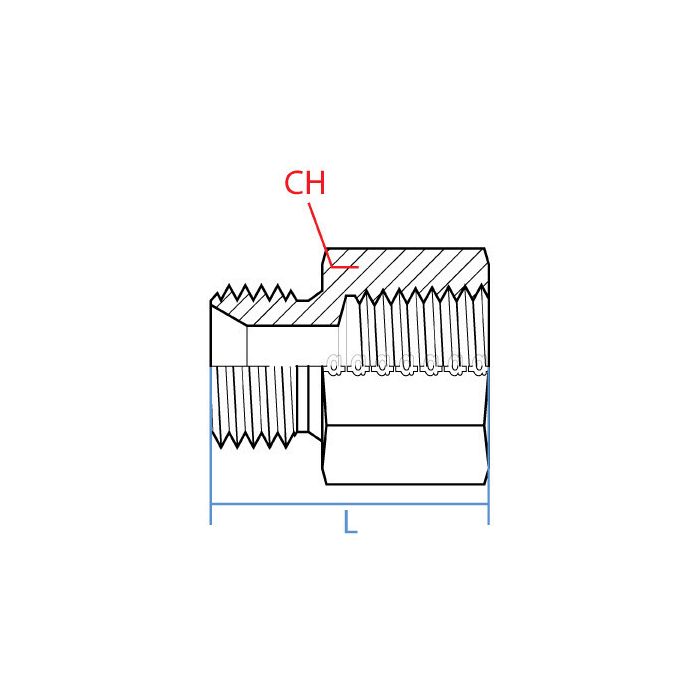

CH Width 16mm	L Length 27.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-02-02	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this steel adapter gonna hold up okay in a hydraulic setup, or is there somethin' else I should be lookin' at?

Question by: Eddie P on Nov 6, 2025, 5:48 PM

Crafted from steel, this adapter is durable and designed for seamless use in hydraulic systems where you need to connect different thread types.

Answer by: Customer Support on Nov 8, 2025, 6:03 AM

Got a piece of equipment running BSPP fittings and need to tie into an NPT port, this a straight-through adapter or does it have some kind of offset to it?

Question by: Brett S on Jun 9, 2025, 6:32 PM

Straight through, no offset. Both sides are 1/8 inch, so you're going G 1/8-28 BSPP on the male end threading into a 1/8-27 NPTF female port on the other. The whole thing is only 27.1mm long and 16mm across, so it'll tuck in without taking up much real estate. Steel construction, made by Adaptall, and it's built for exactly the kind of thread transition you're describing.

Answer by: Customer Support on Jun 11, 2025, 6:16 AM

trying to hook up a british G 1/8 port to a 1/8 NPT line, is this the right little adapter?

Question by: Ray W on Feb 28, 2026, 7:06 AM

For that thread changeover, it matches what you described. One side is a male BSPP connection called out as G 1/8 - 28, and the other side is a female NPTF connection called out as 1/8 - 27 NPTF.

Answer by: Customer Support on Mar 1, 2026, 11:21 AM
