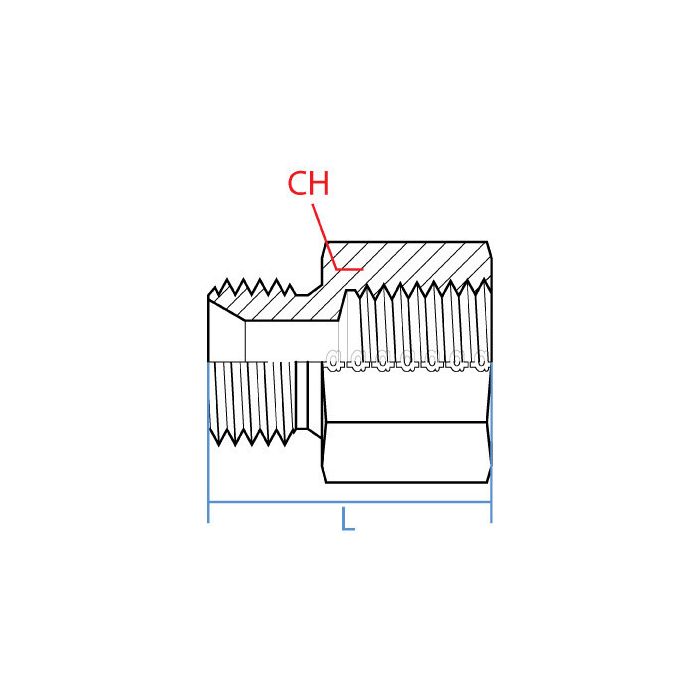

Male Bspp X Female Bspt 9034-06-04

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout R 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9034-06-04	Product Weight 0.14 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the deal with BSPP and BSPT? I'm guessing they don't just screw together, huh?

Question by: Howard W on Feb 26, 2026, 5:00 PM

Designed to bridge exactly this kind of connection, this adapter joins a male BSPP (parallel) to a female BSPT (tapered) thread, which otherwise wouldn't directly connect. It's a common issue in hydraulic systems where different thread standards are used.

Answer by: Customer Support on Feb 27, 2026, 6:18 PM

Got a piece of equipment running G 3/8 BSPP on one port and the mating component only has a 1/4 BSPT female thread. this adapter gonna bridge that gap without needing anything else in between?

Question by: Floyd L on Nov 27, 2025, 7:55 AM

That's what this fitting is built for. One end is a G 3/8-19 male BSPP thread, and the other is an R 1/4-19 female BSPT. So if you've got a BSPP male port and need to accept a 1/4 BSPT male fitting coming in from the other side, this bridges those two standards in a single piece. The BSPP side seals with a bonded seal or O-ring face, and the BSPT female end uses thread taper to get its seal. No additional adapters needed for that specific transition.

Answer by: Customer Support on Nov 29, 2025, 6:23 AM

got a G 3/8-19 male port on one side and need to tie into an R 1/4-19 female BSPT, is this the right adapter?

Question by: Todd S on Mar 15, 2026, 6:02 AM

For bridging those two thread standards, yes. This is a straight steel adapter with a G 3/8-19 male BSPP on one end and an R 1/4-19 female BSPT on the other, made for connecting BSPP (parallel) to BSPT (tapered) in hydraulic or industrial fluid systems.

Answer by: Customer Support on Mar 16, 2026, 8:25 PM
