Bspp Cap 9033-12

Specifications

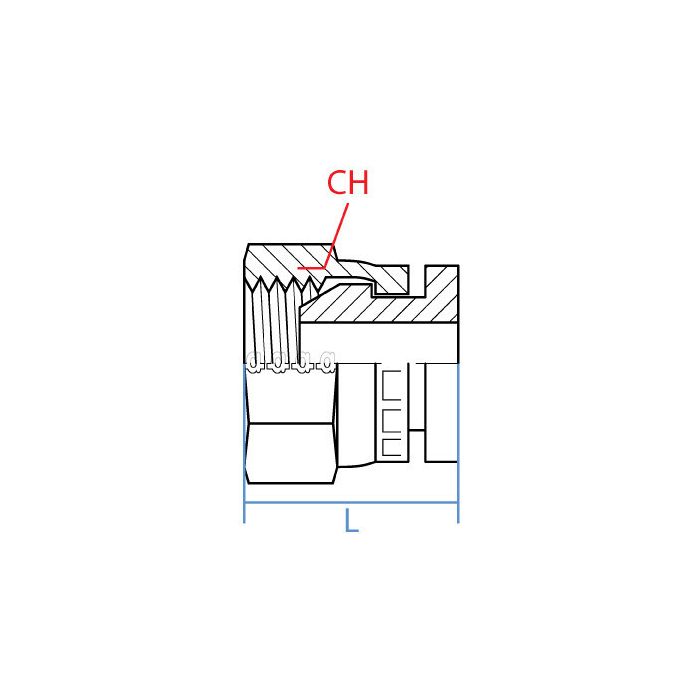

CH Width 32mm	L Length 27.3mm	Adaptall Material Steel	Adaptall Shape Cap	Side 1 Callout G 3/4 - 14	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Bspp	Alternate Part Numbers Alternate Part Number C1NA29, Alternate Part Number MI-02116237, Alternate Part Number MINO-03671J02579	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9033-12	Product Weight 0.30 lbs

Product Questions & Answers 6

Product Questions & Answers

got a 3/4 inch BSPP female port that needs capping off on a hydraulic manifold, this the right part for that?

Question by: Keith M on Mar 3, 2026, 2:49 PM

That's what this cap is built for. It's a 3/4 inch BSPP female port cap, so it threads right into an open G 3/4-14 female port and seals it off. Steel construction, so it holds up well in typical hydraulic environments. The cap measures 27.3mm in length and has a 32mm wrench width, so you'll want a 32mm wrench to snug it down proper.

Answer by: Customer Support on Mar 4, 2026, 3:38 PM

What size wrench do I need for this cap?

Question by: Gene H on Apr 15, 2025, 12:50 PM

You'll need a 32mm wrench to tighten or loosen this BSPP cap.

Answer by: Customer Support on Apr 16, 2025, 5:02 PM

got a female G 3/4-14 port i need to cap off, is this the right thread and size?

Question by: Troy F on Jun 20, 2025, 6:23 AM

The cap is a BSPP female with a G 3/4 - 14 thread callout, listed as 3/4 inch size on side 1. If your port is G 3/4-14 (BSPP), this matches that thread style and size.

Answer by: Customer Support on Jun 22, 2025, 6:35 AM

Is this cap made of steel all the way through?

Question by: Dustin A on Sep 15, 2025, 8:49 AM

Crafted from durable steel, this cap is designed to hold up in demanding industrial environments.

Answer by: Customer Support on Sep 17, 2025, 7:08 AM

got a female bsp cap with G 3/4 - 14 threads, is this the right one?

Question by: Bonnie P on Apr 1, 2025, 10:27 AM

For a G 3/4 - 14 female BSPP thread, this cap matches that callout and is sized 3/4 inch on the female end, so it is meant to thread onto the corresponding male BSPP connection.

Answer by: Customer Support on Apr 3, 2025, 6:46 AM

what thread size does this cap run, and is it a female fitting on both ends or just one?

Question by: Roger H on Mar 14, 2026, 12:14 PM

Just one end has a thread on it. The G 3/4 - 14 BSPP female thread is the only connection point, which is exactly what you'd expect from a cap style fitting. It threads onto a male BSPP port to close it off. There's no second end to connect to anything.

Answer by: Customer Support on Mar 16, 2026, 6:34 AM
