Male Bspt X Female Bspp 9032-06-04

Specifications

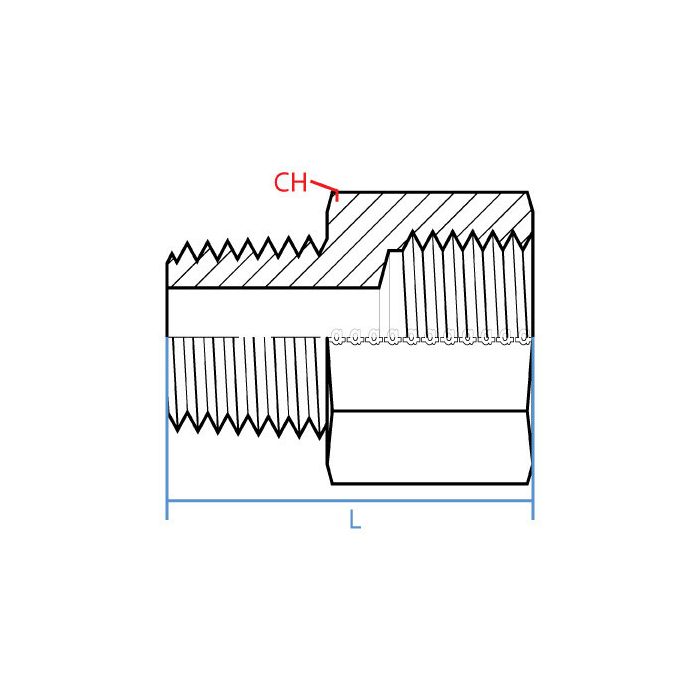

CH Width 17.5mm	L Length 22mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9032-06-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a 3/8" BSPT male fitting to a 1/4" BSPP female fitting?

Question by: Keith P on Aug 30, 2025, 11:14 AM

Yes, this adapter is specifically designed to connect a 3/8" male BSPT thread to a 1/4" female BSPP thread. It's a straight adapter made of steel.

Answer by: Customer Support on Sep 1, 2025, 6:13 AM

Got a 3/8 BSPT male fitting on a hydraulic component and need to tie into a 1/4 BSPP female port, this the right adapter for that?

Question by: Steve C on Dec 28, 2025, 6:18 PM

That's exactly what this one's built for. One end is a 3/8" male BSPT (R 3/8-19) and the other is a 1/4" female BSPP (G 1/4-19), so it handles both the thread form change and the size step-down in a single straight fitting. Steel construction, 22mm long, and takes a 17.5mm wrench if you're torquing it in with standard hand tools.

Answer by: Customer Support on Dec 30, 2025, 11:41 AM

got a fitting with R 3/8-19 on one side and i need to land it into a G 1/4-19 port, is that what this adapter’s for

Question by: Connie W on Sep 28, 2025, 3:07 PM

For swapping between British Standard thread forms, this one goes from a 3/8 inch male BSPT (R 3/8-19, tapered) to a 1/4 inch female BSPP (G 1/4-19, parallel). It is a straight steel adapter meant for exactly that thread change and size reduction in a hydraulic connection.

Answer by: Customer Support on Sep 29, 2025, 9:28 PM
