Male Bspt X Female Bspp

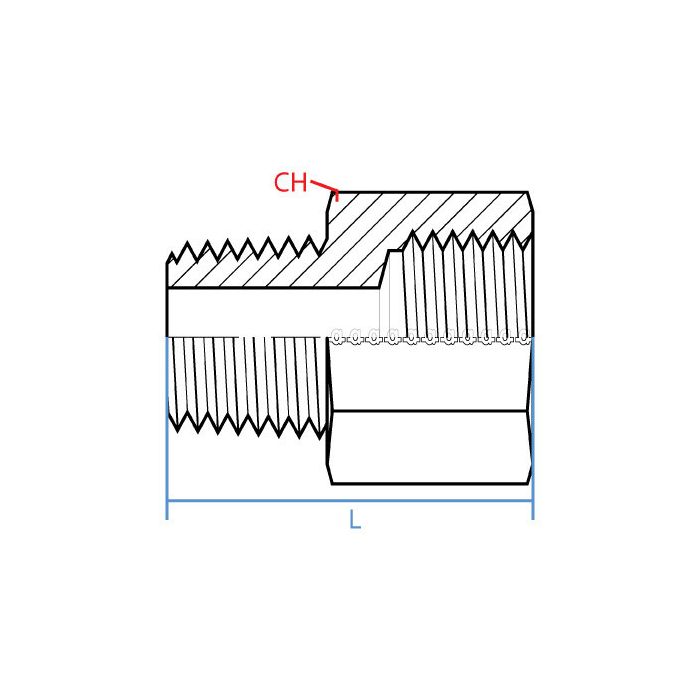

CH Width 19mm	L Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspt	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9032-04-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread difference between bspt and bspp on this fitting, and does it matter which end goes where?

Question by: Duane B on Jul 31, 2025, 2:03 PM

BSPT is a tapered thread and BSPP is a parallel thread. On this adapter, the male end is the tapered BSPT side and the female end is the parallel BSPP side. That difference is fixed, so the orientation is not interchangeable. You would connect the male BSPT end into a tapered female port and the female BSPP end receives a parallel male fitting. Getting those mixed up will cause sealing problems, so it's worth double-checking your port types before you wrench it down.

Answer by: Customer Support on Aug 2, 2025, 6:27 AM
