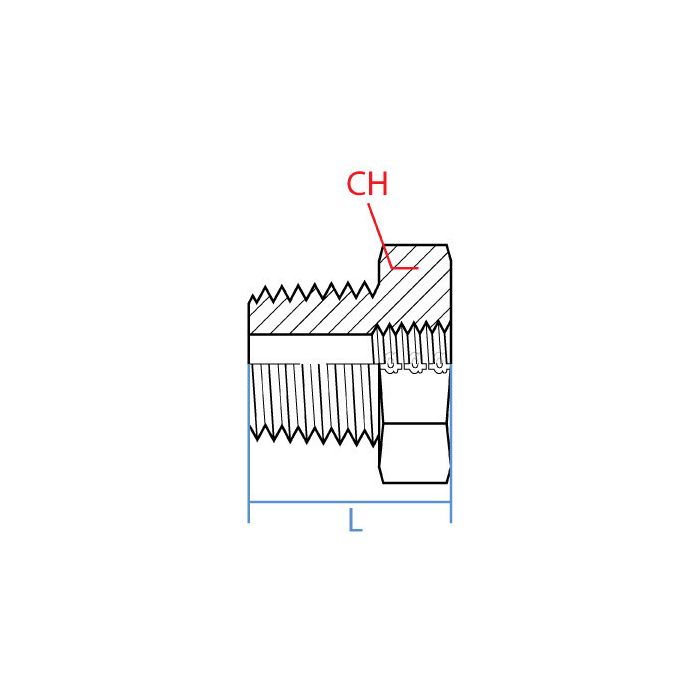

Male Bspt-Female Bspt Bushing

CH Width 17.5mm	L Length 25.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspt	Side 2 Callout R 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9031-06-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the thread count on both ends of this bushing? trying to match up to some existing fittings on a hydraulic line

Question by: Chad S on Aug 3, 2025, 11:31 AM

Both ends run a 19 threads per inch pitch. The male side is 3/8" BSPT and the female side steps down to 1/4" BSPT, so if your existing fittings follow that same R-series thread standard, this should line right up.

Answer by: Customer Support on Aug 4, 2025, 7:11 PM

got a 3/8 BSPT male port but my hose end is 1/4 BSPT male. is this the little bushing i need?

Question by: Joyce W on Jun 4, 2025, 9:05 AM

To step down between those two BSPT sizes, this bushing gives you a 3/8 inch BSPT male on one side and a 1/4 inch BSPT female on the other, so a 1/4 inch BSPT male fitting can thread into it.

Answer by: Customer Support on Jun 6, 2025, 6:50 AM
