Bspp Hex Plug

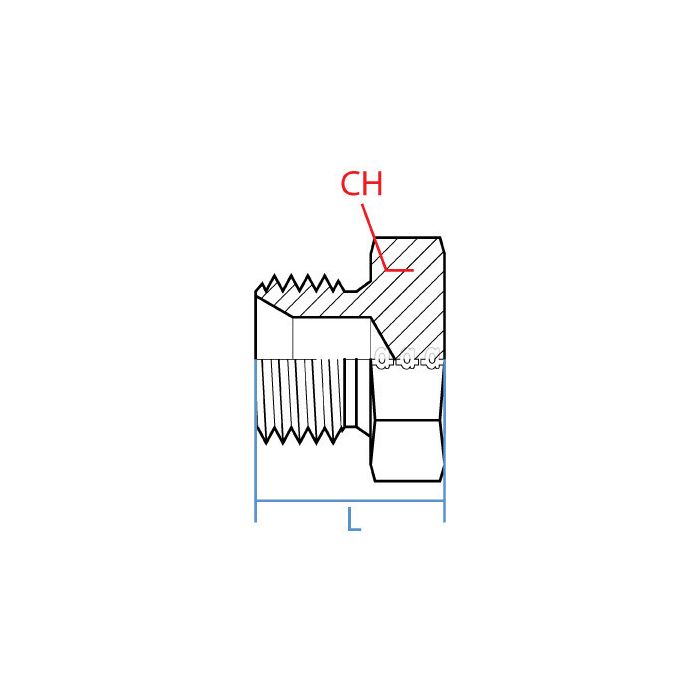

CH Width
41mm
L Length
33.5mm
Adaptall Material
Steel
Adaptall Shape
Plug
Side 1 Callout
G 1 - 11
Side 1 Gender
M
Side 1 Size
1"
Side 1 Type
Bspp
Alternate Part Numbers
Alternate Part Number C1NA18, Alternate Part Number MI-01190384, Alternate Part Number MINO-03671X58552
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9030-16
Product Weight
0.45 lbs

Product Questions & Answers

what size thread is on this plug? trying to figure out if it'll fit a 1 inch BSPP port i got on a manifold block
Question by: Duane T on Dec 16, 2025, 6:31 PM
that lines up. The thread on this plug is G 1-11, which is the standard 1 inch BSPP male thread. If your manifold port is spec'd for a 1 inch BSPP female connection, this plug will fit right in.
Answer by: Customer Support on Dec 18, 2025, 6:20 AM
got a port that’s G 1 - 11 BSPP. is this the right plug for it?
Question by: Donna S on May 14, 2025, 1:00 PM
With a G 1 - 11 male BSPP thread and a 1 inch size, this plug matches ports that call for that exact BSPP thread and size.
Answer by: Customer Support on May 16, 2025, 6:36 AM
What size wrench do I need to tighten this plug down?
Question by: Hugh F on Jun 1, 2025, 1:32 PM
You'll need a 41mm wrench to properly tighten this plug. The width of the hex is 41mm, allowing for a secure fit with the appropriate tool.
Answer by: Customer Support on Jun 3, 2025, 6:27 AM
got a 1 inch BSPP port that needs capping off on a hydraulic manifold, this hex plug gonna fit that?
Question by: Keith P on Sep 16, 2025, 7:01 PM
A G 1 - 11 thread is the standard BSPP designation for a 1 inch port, so yes, that lines up directly with what you're describing. The male thread on this plug seats into a female BSPP port, which is the typical configuration on manifold blocks. At 41mm across the hex flats, you'll need a wrench to match, but that's a standard size for this class of fitting. Steel construction holds up fine in hydraulic manifold applications where you've got pressure and some vibration to deal with.
Answer by: Customer Support on Sep 17, 2025, 7:44 PM
