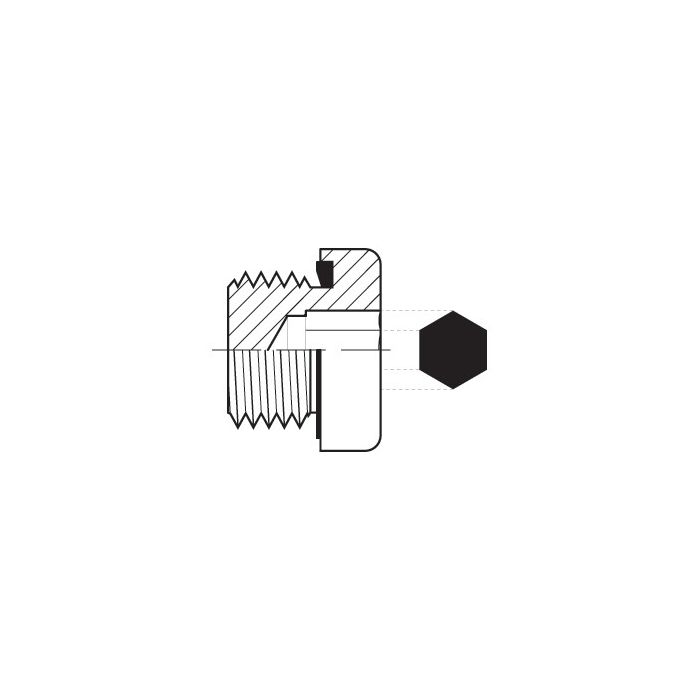

Metric Countersunk Sealed Plug

CH Width 17mm	L Length 16.3mm	Adaptall Material Steel	Adaptall Shape Plug	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size 12mm	Side 1 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9029-12X1.5	Product Weight 0.04 lbs

Product Questions & Answers 2

Product Questions & Answers

Got an M12 x 1.5 port on a manifold that ain't being used right now, this plug gonna sit flush with the face or does it stick out some?

Question by: Roy C on Feb 18, 2026, 12:53 PM

Countersunk geometry is the whole point of this plug. It seats down into the port face rather than protruding above it, so you end up with a low-profile finish that works well in tight clearance situations. The overall length is 16.3mm, but the countersunk shape means the installed profile stays clean against the surface. Good choice for manifold ports where space around the fitting area is limited.

Answer by: Customer Support on Feb 19, 2026, 1:25 PM

got a metric port i aint using, is this plug the one that sits down flush in the face?

Question by: Billy M on Feb 2, 2026, 1:12 PM

With the countersunk profile, it’s meant to seat down into the port face for a flush or recessed finish. That makes it handy on manifolds, valves, cylinders, and similar hydraulic parts where you want a low-profile cap on an unused port.

Answer by: Customer Support on Feb 4, 2026, 6:23 AM
