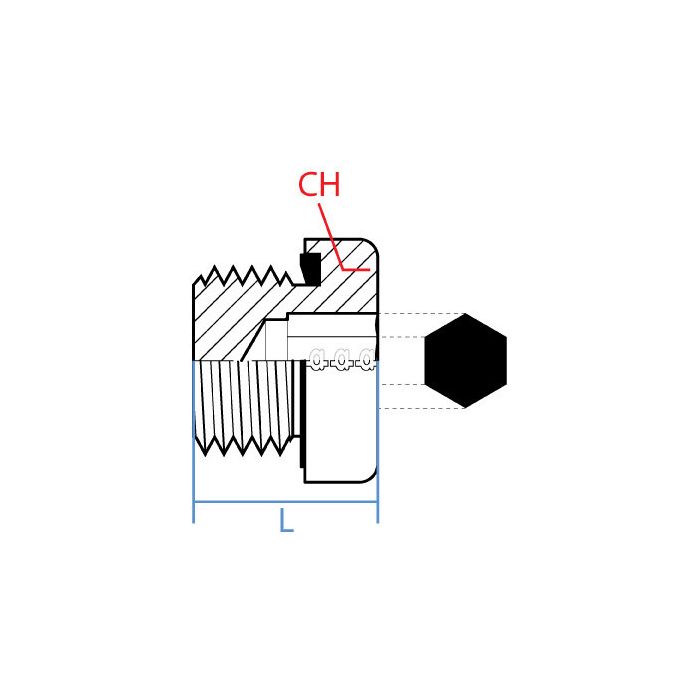

Bspp Countersunk Sealed Plug

CH Width
55mm
L Length
22.5mm
Adaptall Material
Steel
Adaptall Shape
Plug
Side 1 Callout
G 1-1/2 - 11
Side 1 Gender
M
Side 1 Size
1-1/2"
Side 1 Type
Bspp
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9028-24
Product Weight
0.60 lbs

Product Questions & Answers

Got a manifold block with a 1-1/2 inch BSPP port I need to cap off, will this plug work for that?
Question by: Todd E on Jun 15, 2025, 12:52 PM
That's the kind of application this plug is built for. It's a male G 1-1/2 - 11 BSPP threaded fitting, so it'll thread directly into a female 1-1/2 inch BSPP port on a manifold. The countersunk profile keeps it sitting low once it's installed, which helps if clearance around that port face is tight. Steel construction, 55mm hex width for solid torque during installation.
Answer by: Customer Support on Jun 16, 2025, 5:58 PM
trying to cap off an unused port on a manifold, is this the right kind of plug for that?
Question by: Dwight C on Aug 15, 2025, 4:26 PM
For sealing off unused or inactive ports in a hydraulic circuit, this plug is meant for exactly that job. It is a steel, male BSPP plug sized for a 1-1/2 inch port with a G 1-1/2 - 11 thread, commonly used on manifolds, valves, cylinders, and similar hydraulic components.
Answer by: Customer Support on Aug 16, 2025, 8:52 PM
What size is the hex on this plug? Just makin' sure my wrench will fit.
Question by: Earl M on Aug 21, 2025, 3:01 PM
The hex width on this BSPP countersunk plug is 55mm, so you'll need a wrench that size to tighten or remove it.
Answer by: Customer Support on Aug 22, 2025, 7:57 PM
